Front Fascia Harness Routing

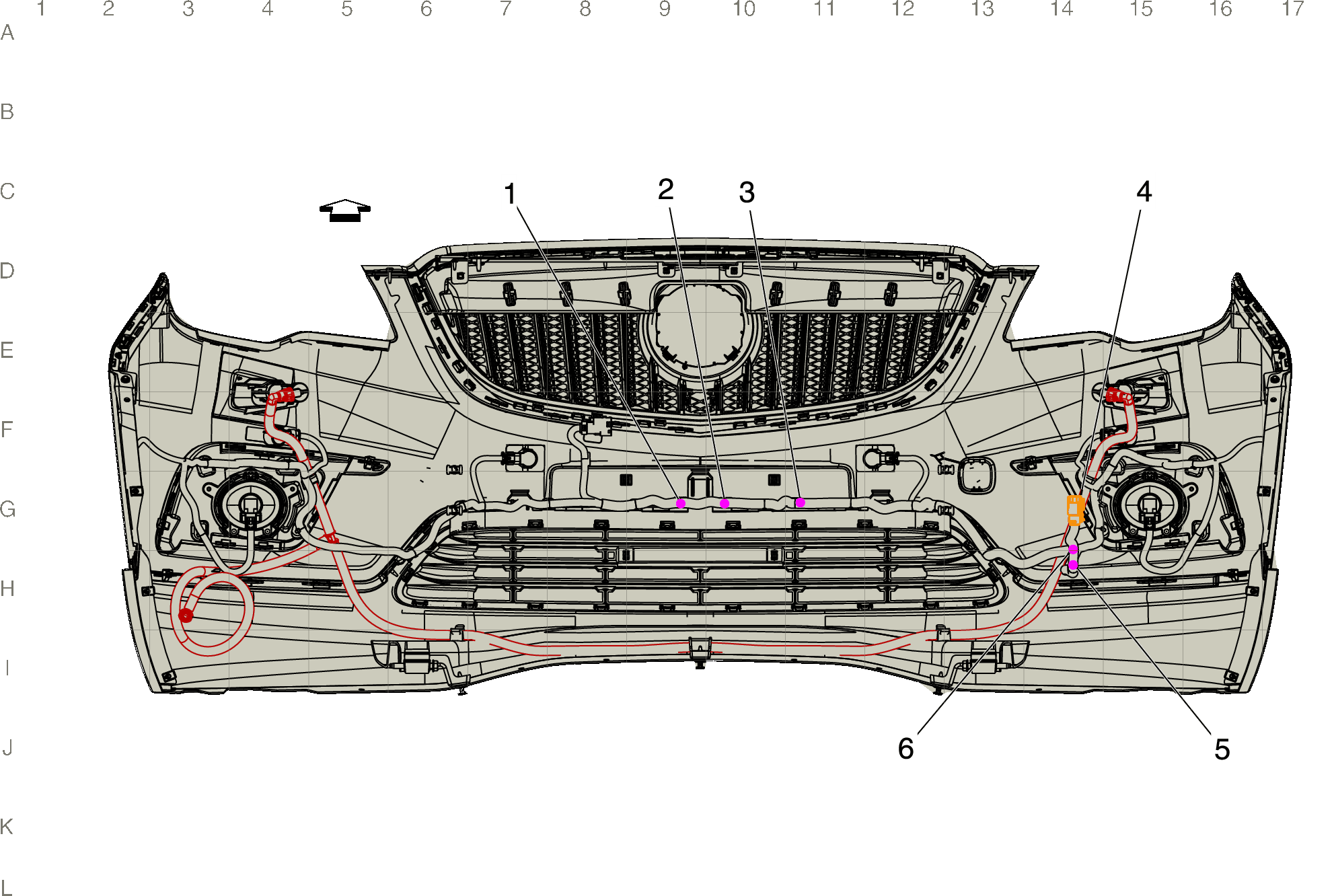

Fig 1: Front Fascia Harness Routing
GM4004252Courtesy of GENERAL MOTORS COMPANY
Items
J101 Front Fascia Harness
J102 Front Fascia Harness (UD5 or UFQ)
J103 Front Fascia Harness (UD5 or UFQ)
X123 Front Fascia Harness to Forward Lamp Harness X123 Front Fascia Harness to Forward Lamp Harness
J105 Front Fascia Harness
J104 Front Fascia Harness (UVH)
