Forward Lamp Harness Routing

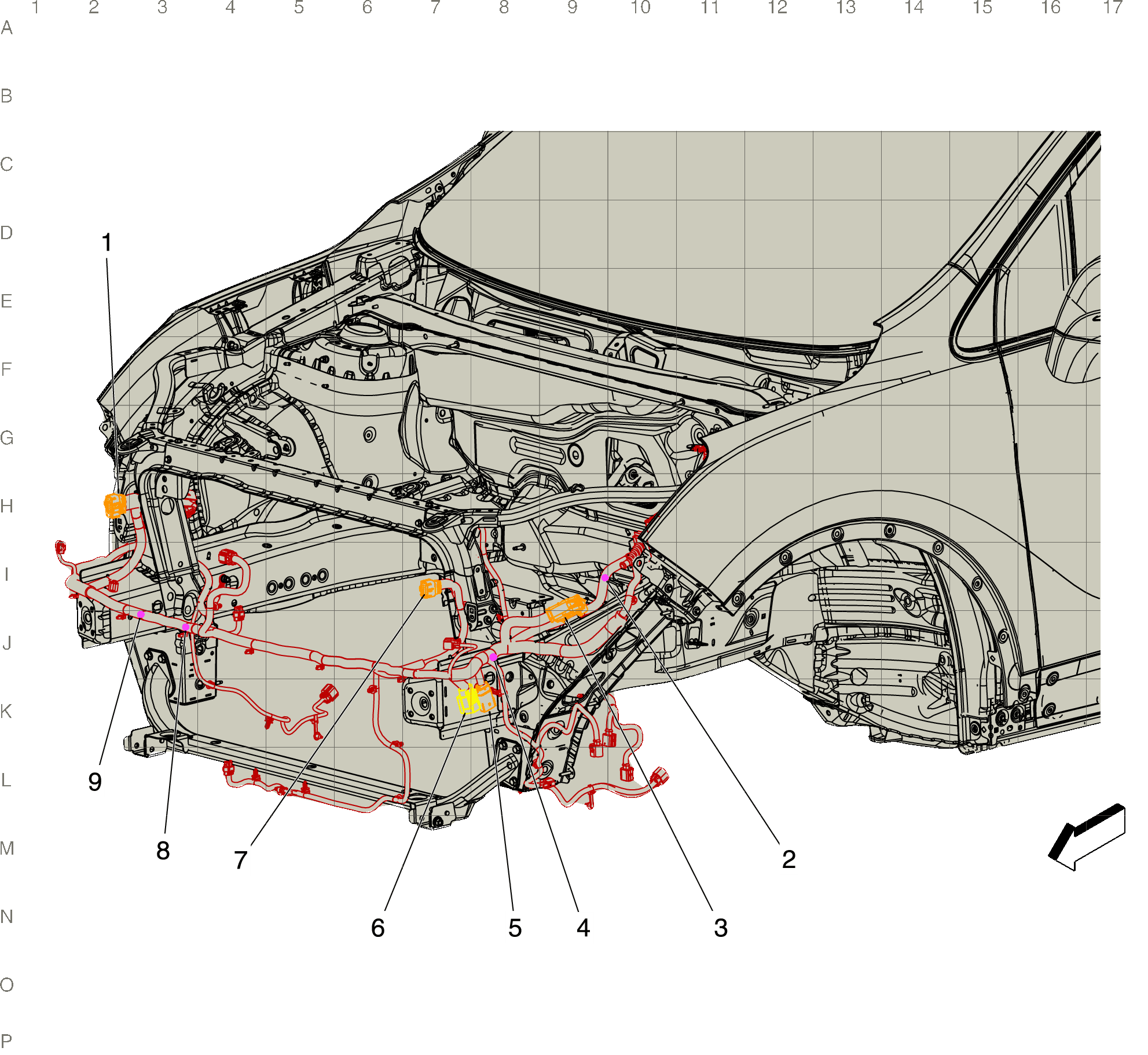

Fig 1: Forward Lamp Harness Routing
GM4004254Courtesy of GENERAL MOTORS COMPANY
Items
X120 Forward Lamp Harness to Right Headlamp Harness X120 Forward Lamp Harness to Right Headlamp Harness (T4L)
J106 Forward Lamp Harness
X105 Body Harness to Forward Lamp Harness X105 Body Harness to Forward Lamp Harness
J108 Forward Lamp Harness
X109 Dual Cooling Fan Harness to Forward Lamp Harness X109 Dual Cooling Fan Harness to Forward Lamp Harness
X108 Forward Lamp Harness to Dual Cooling Fan Harness X108 Forward Lamp Harness to Dual Cooling Fan Harness
X110 Forward Lamp Harness to Left Headlamp Harness X110 Forward Lamp Harness to Left Headlamp Harness (T4L)
J109 Forward Lamp Harness
J110 Forward Lamp Harness
