Engine Harness Routing View - Right Front (LTG)

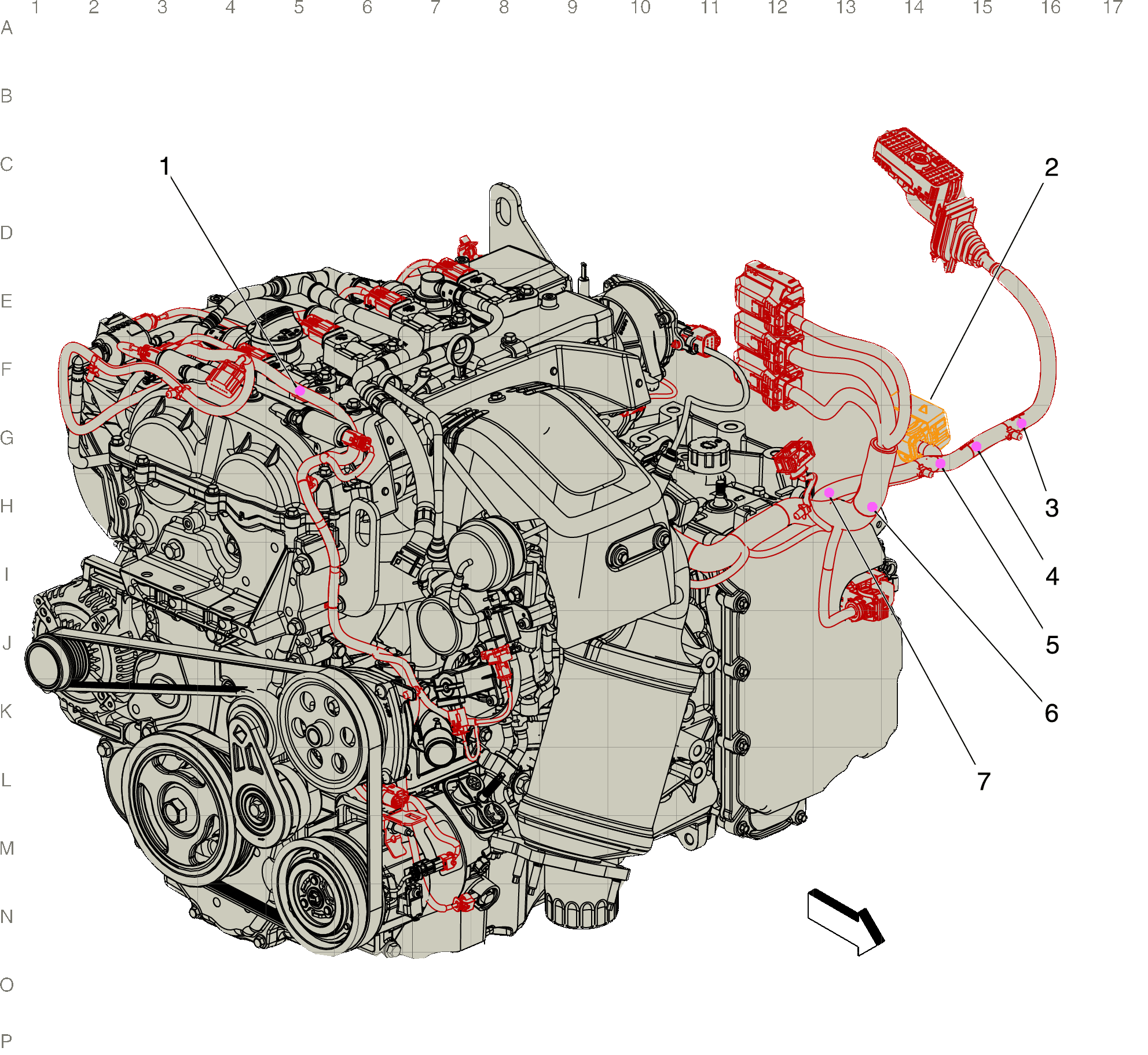

Fig 1: Engine Harness Routing View - Right Front (LTG)
GM4004297Courtesy of GENERAL MOTORS COMPANY
Items
J124 Engine Harness
X112 Engine Harness to Body Harness X112 Engine Harness to Body Harness
J113 Engine Harness
J114 Engine Harness
J117 Engine Harness
J118 Engine Harness
J115 Engine Harness
