Engine Harness Routing View - Left Rear (LTG)

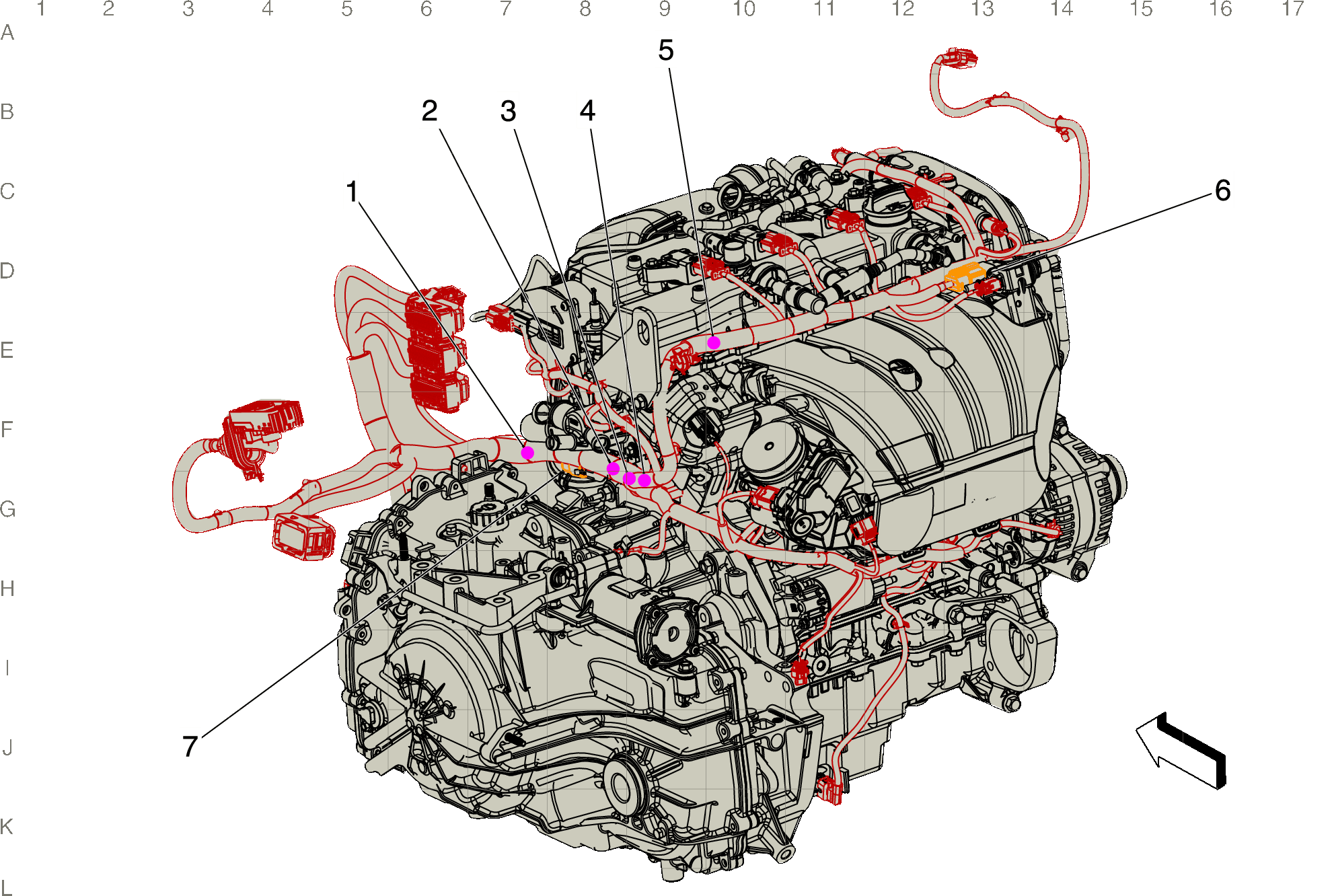

Fig 1: Engine Harness Routing View Left Rear (LTG)
GM4004299Courtesy of GENERAL MOTORS COMPANY
Items
J123 Engine Harness
J120 Engine Harness
J122 Engine Harness
J119 Engine Harness
J121 Engine Harness
X160 Engine Harness to Fuel Injector Harness X160 Engine Harness to Fuel Injector Harness
X165 Engine Harness to Engine Oil Pan Harness X165 Engine Harness to Engine Oil Pan Harness
