Body Harness Routing - Right Rear of Passenger Compartment

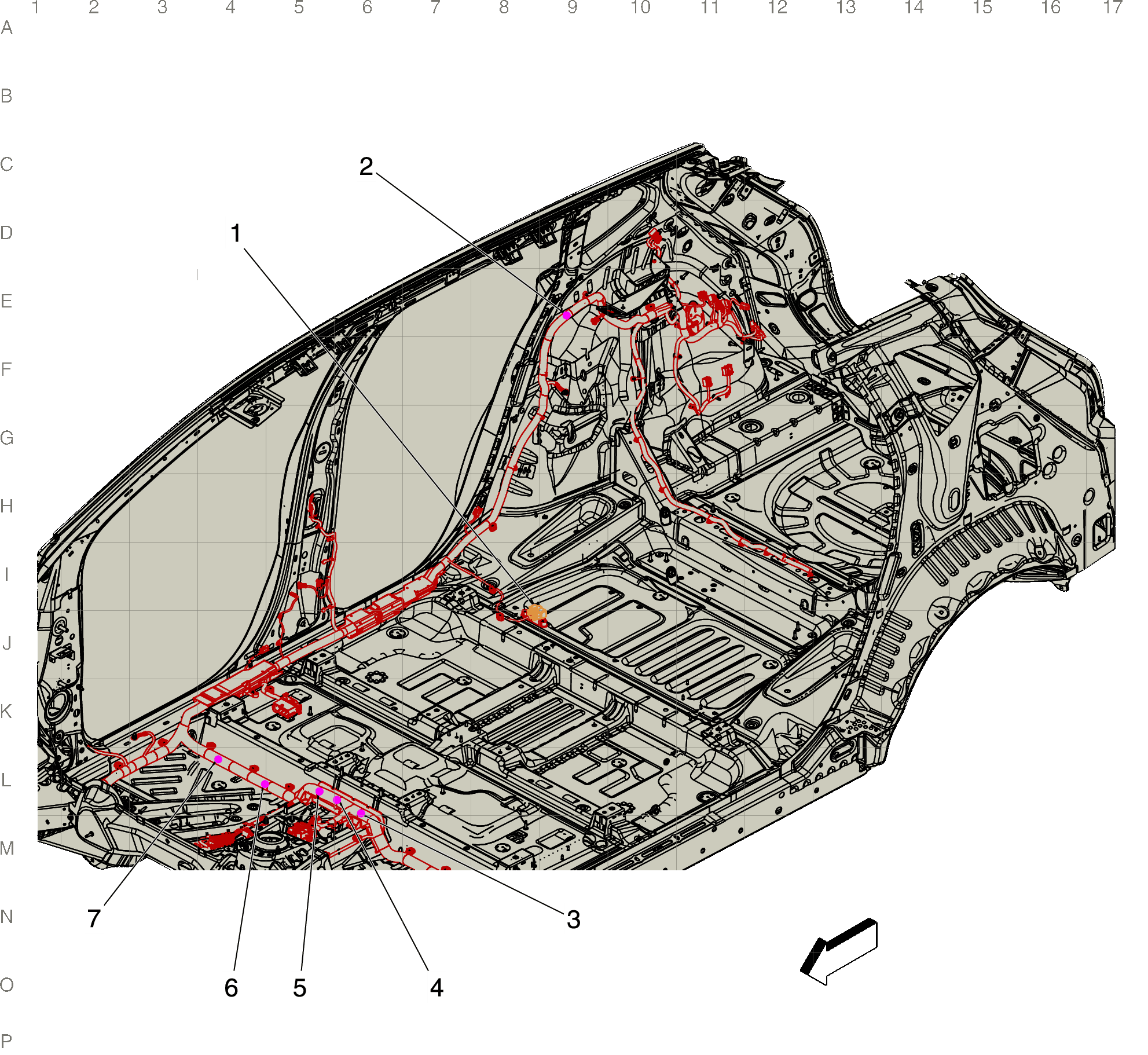

Fig 1: Body harness Routing Right Rear of Passenger Compartment
GM4004274Courtesy of GENERAL MOTORS COMPANY
Items
X304 Body Harness to Right Rear Seat Harness X304 Body Harness to Right Rear Door Harness
J343 Body Harness
J325 Body Harness
J328 Body Harness
J324 Body Harness
J322 Body Harness
J321 Body Harness
