Home >> Buick >> 2019 >> Envision Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Systems Wiring Schematics >> Indicators

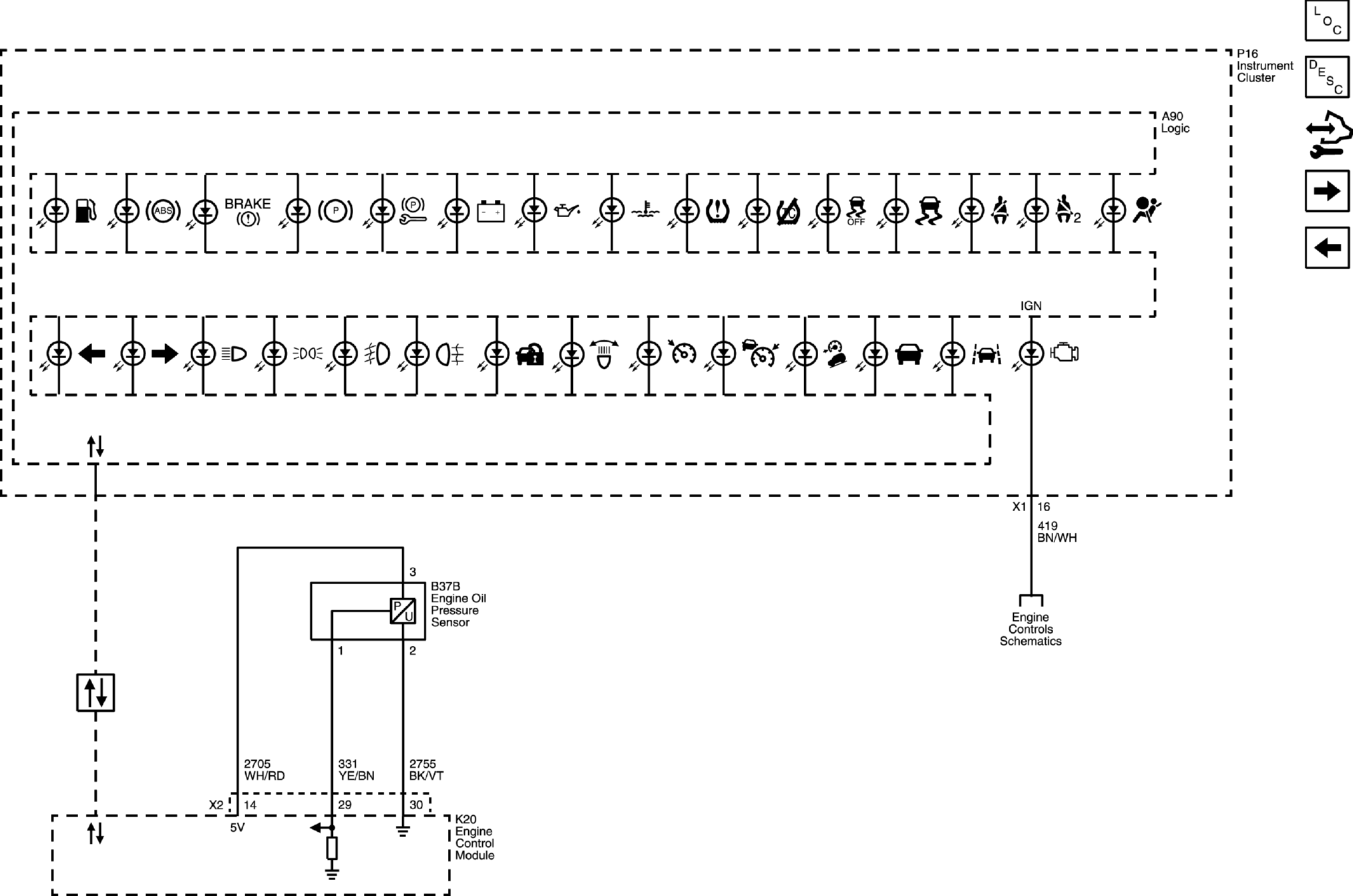

Instrument Cluster Systems Wiring Schematics: Indicators

GM4850725

Courtesy of GENERAL MOTORS COMPANY
