Home >> Buick >> 2019 >> Encore Preferred, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics (Trax) >> Power, Ground, Serial Data, and Gauges (Trax)

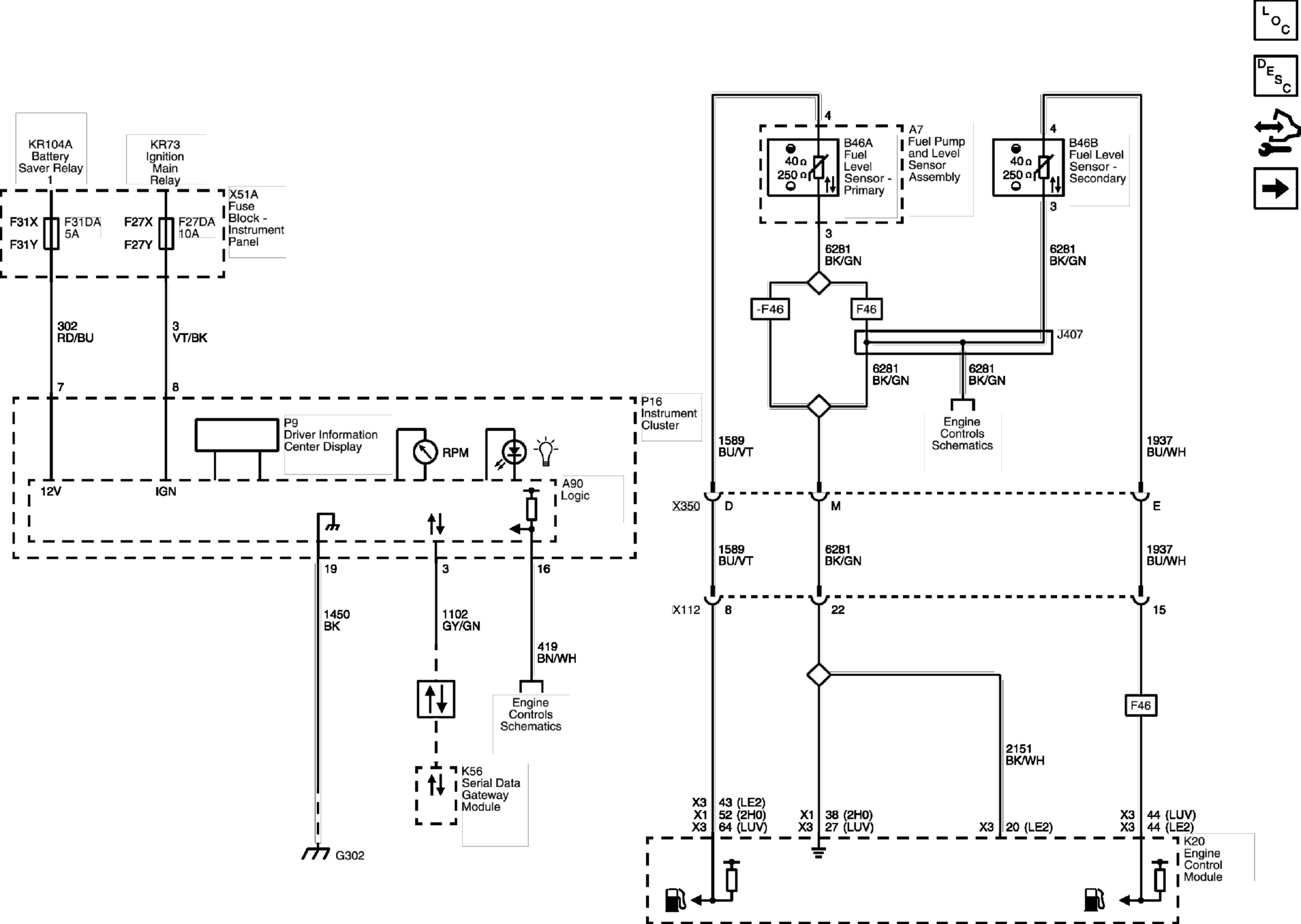

Power, Ground, Serial Data, and Gauges (Trax)

GM4918901

Courtesy of GENERAL MOTORS COMPANY
