X305 Body Harness to Headliner Harness

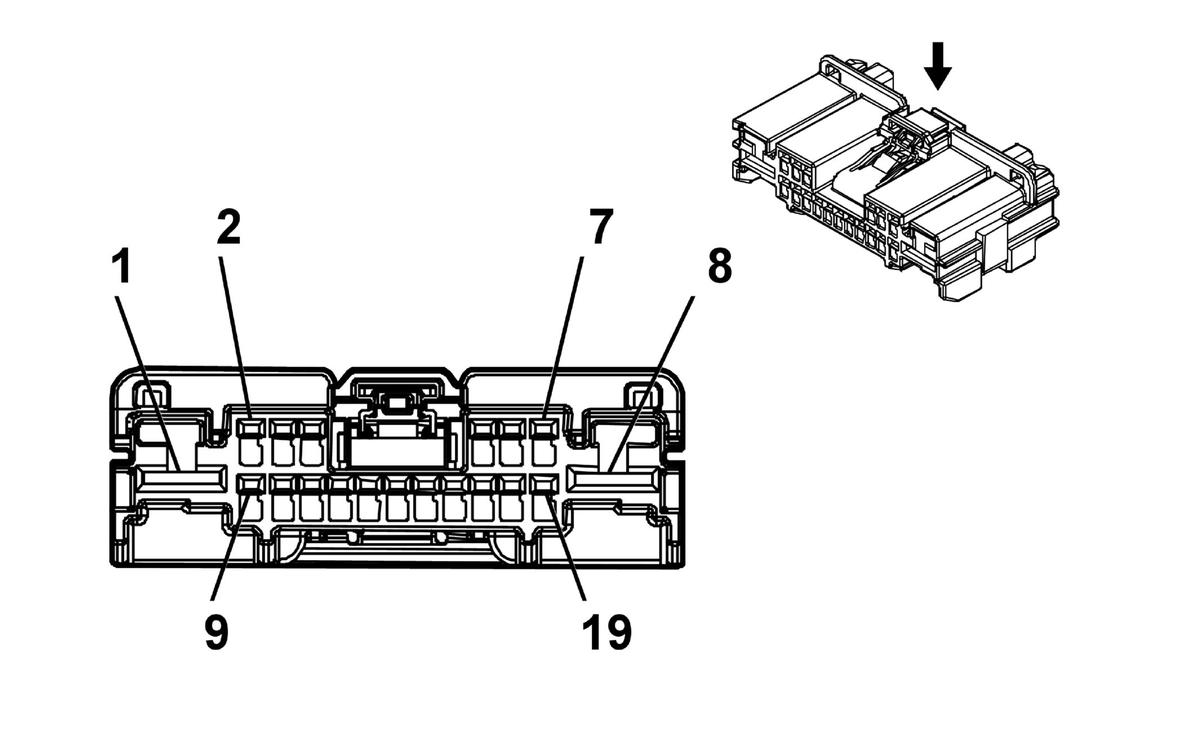

GM4939650Courtesy of GENERAL MOTORS COMPANY
GM4879946Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 6098-8088
  • Service Connector: 13526847
  • Description: 19-Way F 1.2, 6.3 Series (BK)
 Connector Part Information
  • Harness Type: Headliner
  • OEM Connector: 13597288
  • Service Connector: 13597288
  • Description: 19-Way M 1.2, 6.3 Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575833 J-35616-42 (RD) J-38125-11A 7116-4120-02 Yazaki 9 E B
II 19300649 J-35616-16 (LT GN) J-38125-215A Not Available Not Available Not Available Not Available
III 13580023 J-35616-43 (RD) J-38125-11A 7114-4121-02 Yazaki 9 C B
IV 19330703 J-35616-17 (LT GN) J-38125-215A Not Available Not Available Not Available Not Available
V 19352074 J-35616-17 (LT GN) J-38125-215A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 1 BK 1350 I C3U Ground 1 2 BK 1350 III C3U
2 0.35 RD/BN 4940 II - Battery Positive Voltage 2 0.35 RD/BN 4940 IV -
3 0.35 GY 157 II - Interior Lamp Control 3 0.35 GY 157 IV -
4 0.35 WH/BN 6815 II - Inadvertent Power Control 4 0.35 WH/BN 6815 IV -
5 0.35 GY/BN 3010 II - Noise Reduction Microphone 3 Low Reference 5 0.5 GY/BN 3010 V -
6 0.35 GY/BU 3007 II - Noise Reduction Microphone 3 Signal 6 0.5 GY/BU 3007 V -
7 0.35 GN/BN 6132 II C3U Local Interconnect Network Serial Data Bus 1 7 0.35 GN/BN 6132 IV C3U
8 1 RD/GY 3540 I C3U Battery Positive Voltage 8 2 RD/GY 3540 III C3U
9 0.35 RD/BU 3940 II - Battery Positive Voltage 9 0.35 RD/BU 3940 IV -
10 0.35 BK/WH 1351 II UEU Signal Ground 10 0.35 BK/WH 1351 IV -
11 - - - - - Not Occupied 11 - - - - -
12 0.35 WH 3811 II UGN High Speed GMLAN Serial Data (-) 4 12 0.35 WH 3811 IV UGN
13 0.35 BU/VT 3813 II UGN High Speed GMLAN Serial Data (+) 4 13 0.35 BU/VT 3813 IV UGN
14 - - - - - Not Occupied 14 - - - - -
15 0.35 WH 2501 II - High Speed GMLAN Serial Data (-) 1 15 0.35 WH 2501 IV -
16 0.35 BU 2500 II - High Speed GMLAN Serial Data (+) 1 16 0.35 BU 2500 IV -
17 - - - - - Not Occupied 17 - - - - -
18 0.35 WH/GN 1776 II - Noise Reduction Microphone #4 Return 18 0.5 WH/GN 1776 V -
19 0.35 VT/BU 1775 II - Noise Reduction Microphone #4 Signal 19 0.5 VT/BU 1775 V -
