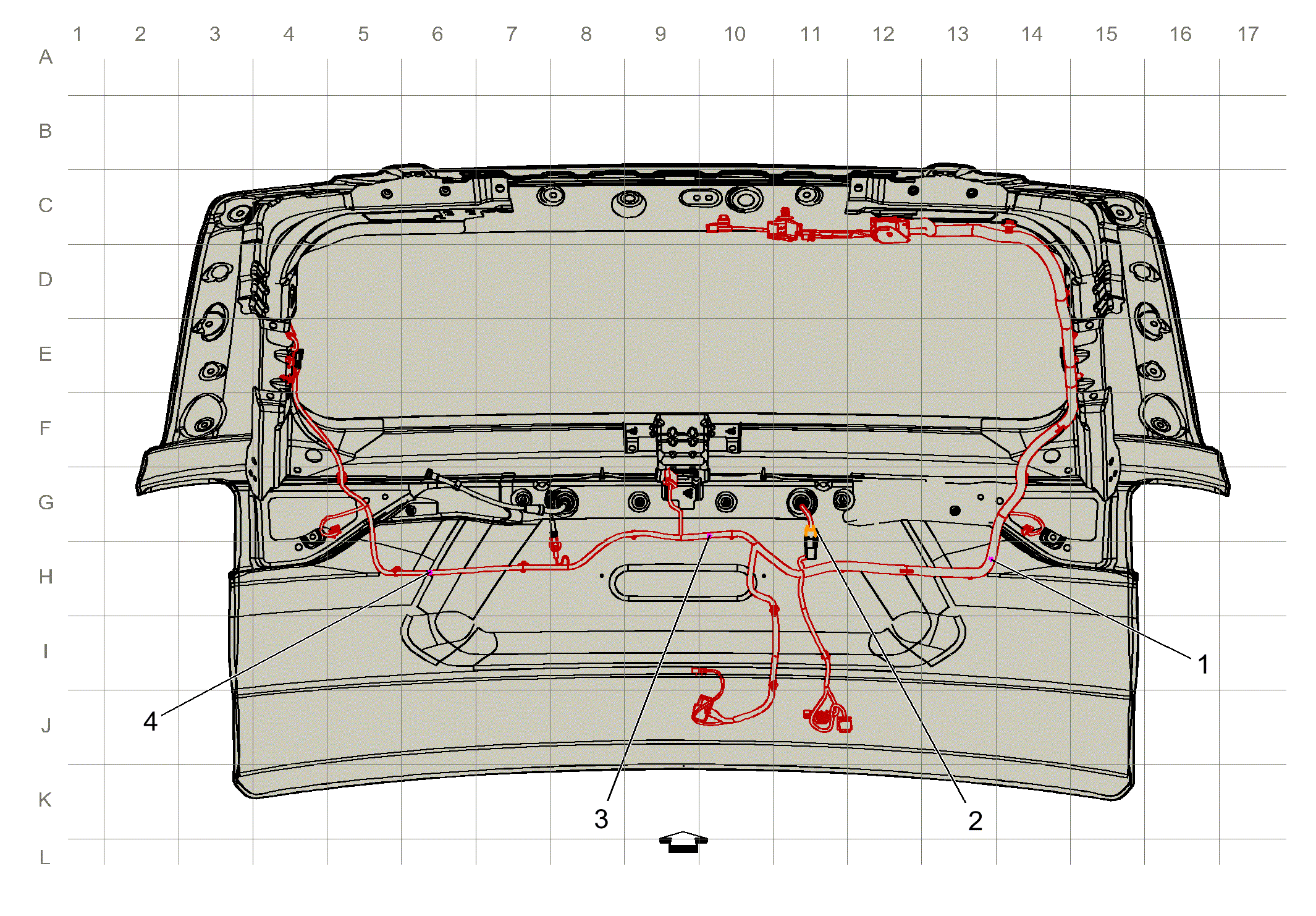

Liftgate Harness Routing (X88)

GM4743140Courtesy of GENERAL MOTORS COMPANY
Items
1. J900 Liftgate Harness
2. X901 License Lamp Harness to Liftgate Harness X901 License Lamp Harness to Liftgate Harness (-DRZ)X901 License Lamp Harness to Liftgate Harness (DRZ)
3. J905 Liftgate Harness (UVH)
4. J901 Liftgate Harness
