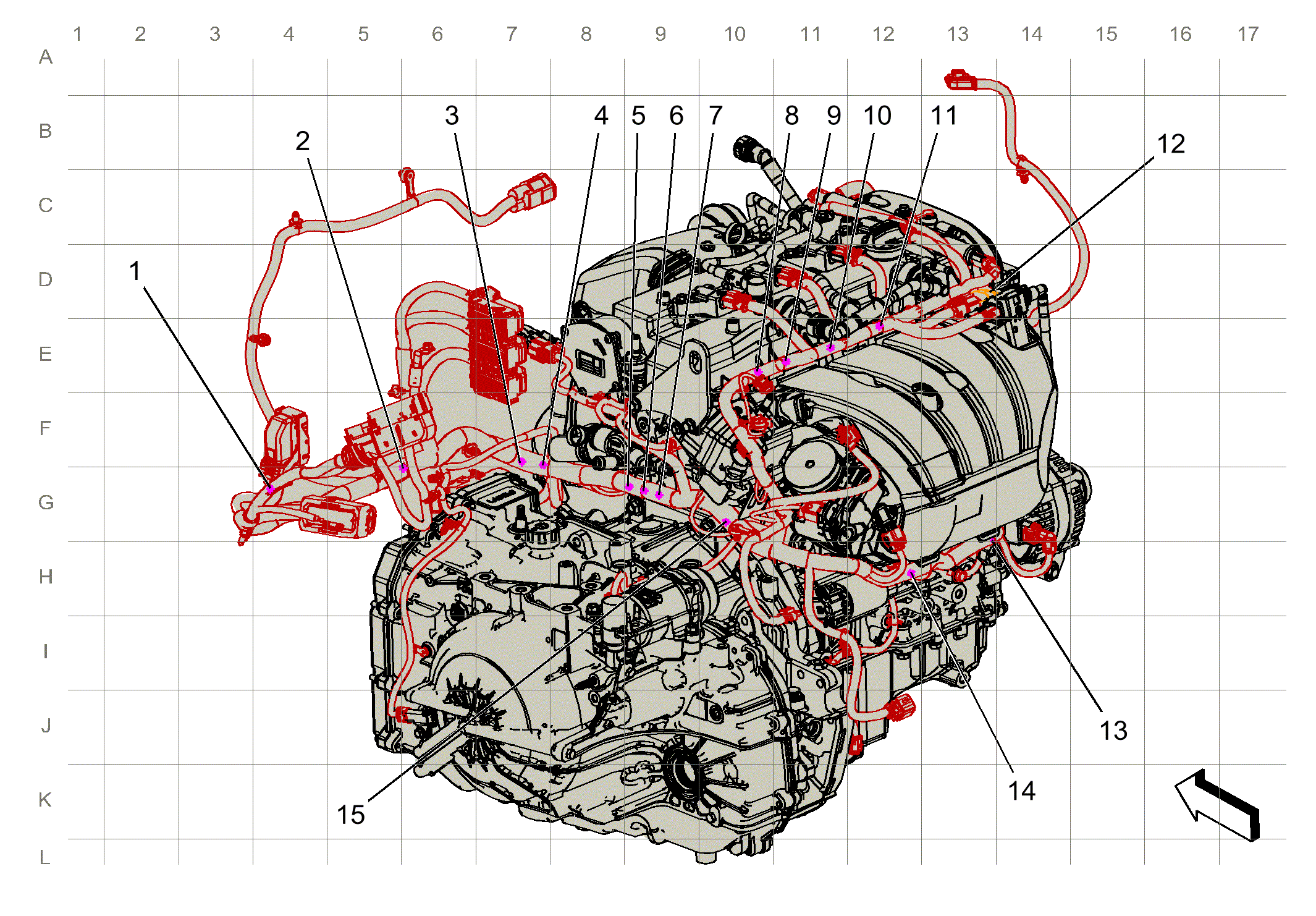

Engine Harness Routing - Left Rear (LTG)
| Items |
|---|
| 1. J128 Engine Harness |
| 2. J106 Engine Harness |
| 3. J147 Engine Harness |
| 4. J120 Engine Harness |
| 5. J123 Engine Harness |
| 6. J117 Engine Harness |
| 7. J116 Engine Harness |
| 8. J122 Engine Harness |
| 9. J126 Engine Harness |
| 10. J127 Engine Harness |
| 11. J124 Engine Harness |
| 12. X160 Engine Harness to Fuel Injector Harness X160 Engine Harness to Fuel Injector Harness (LTG) |
| 13. J124 Engine Harness |
| 14. J121 Engine Harness |
| 15. J107 Engine Harness (LTG) |
