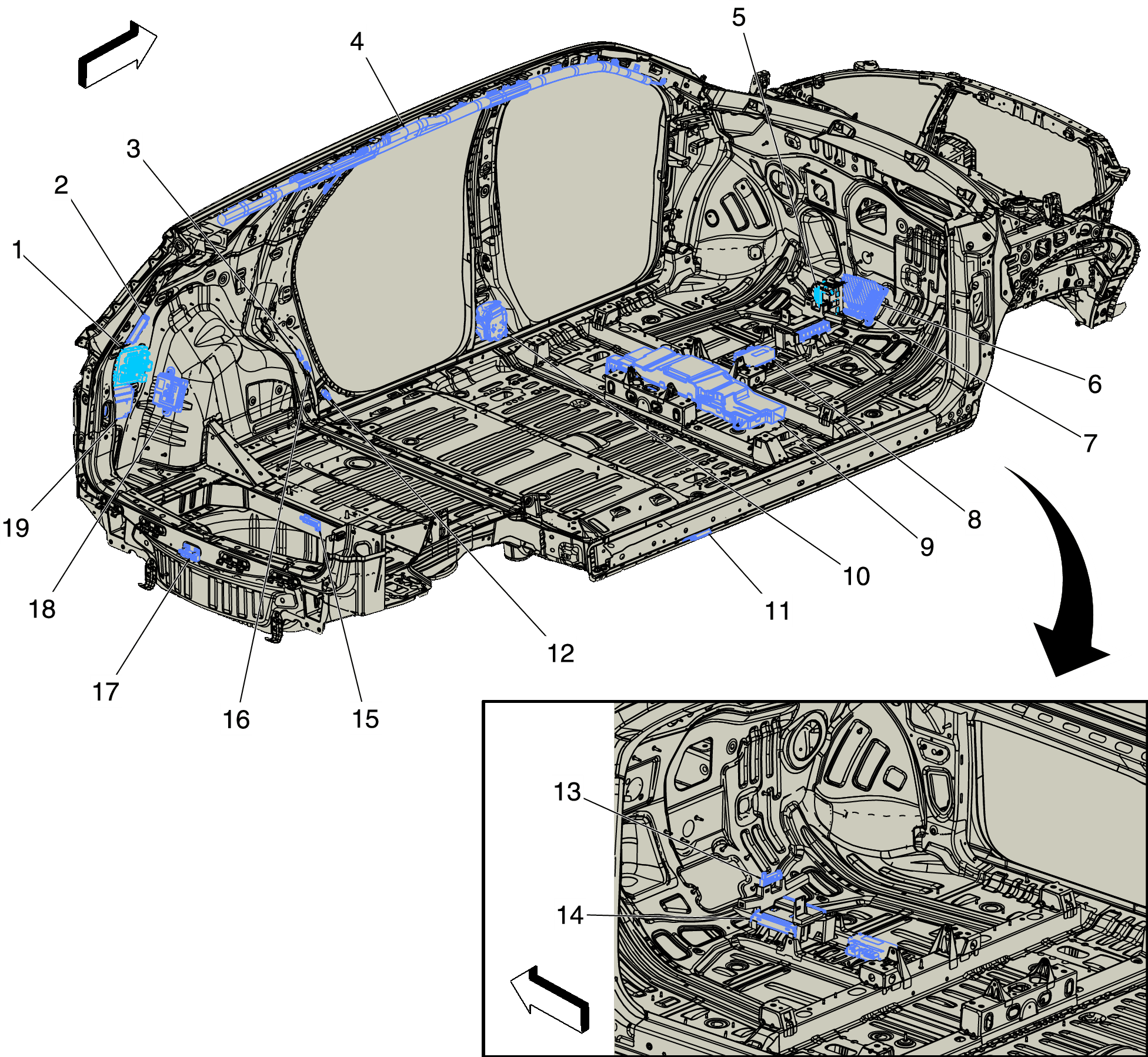

Left Side and Center of Passenger Compartment Components (X88)

Courtesy of GENERAL MOTORS COMPANY

Left Side and Center of Passenger Compartment Components (X88)

Items
1. X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X1X53A Fuse Block - Rear Body X2X53A Fuse Block - Rear Body X3
2. K39 Liftgate Control Module (TB5 or TC2) K39 Liftgate Control Module X1 (TB5/TC2)K39 Liftgate Control Module X2 (TB5/TC2)K39 Liftgate Control Module X3 (TB5/TC2)
3. R6E Terminating Resistor - High Speed Extension Bus 1 R6E Terminating Resistor - High Speed Extension Bus 1
4. F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
5. T19 Power Supply Transformer T19 Power Supply Transformer
6. T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 (UQA)T3 Audio Amplifier X2 (UQA)T3 Audio Amplifier X3 (UQA)T3 Audio Amplifier X4 (UQA)
7. K108 Active Noise Cancellation Module (UQF) K108 Active Noise Cancellation Module X1 (UQF)K108 Active Noise Cancellation Module X2 (UQF)K108 Active Noise Cancellation Module X3 (UQF)
8. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
9. P19AC Speaker - Subwoofer P19AC Speaker - Subwoofer (UQA)
10. F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
11. T10R Keyless Entry Antenna - Right Body T10R Keyless Entry Antenna - Right Body
12. B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear
13. T10U Keyless Entry Antenna - Instrument Panel T10U Keyless Entry Antenna - Instrument Panel
14. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
15. T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment
16. R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus (-F48)R6A Terminating Resistor - High Speed Bus (F48)
17. T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia
18. K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1K84 Keyless Entry Control Module X2
19. K157 Video Processing Control Module (UVH) K157 Video Processing Control Module X1 (UVH)K157 Video Processing Control Module X2 (UVH)
