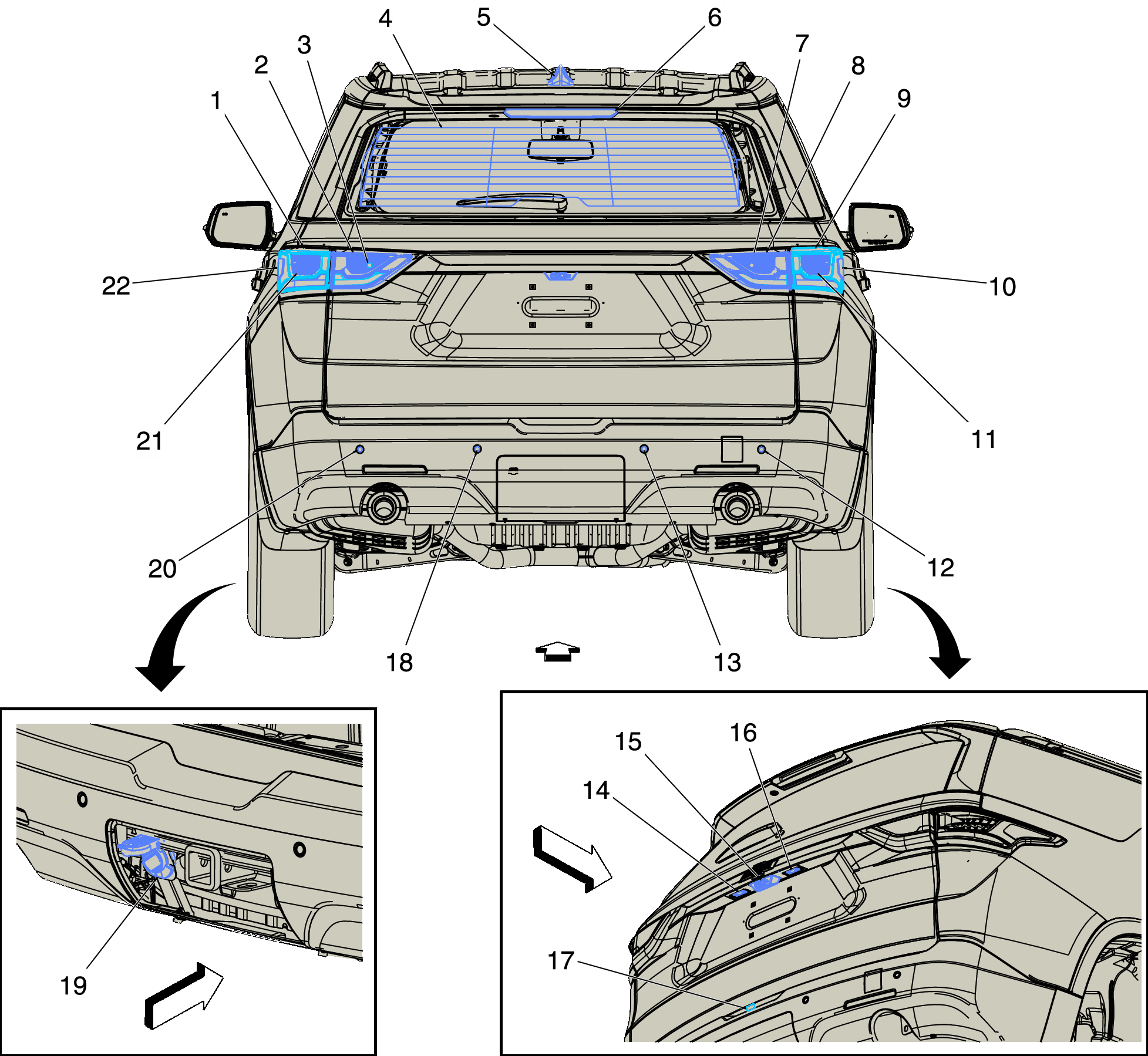

Rear of Vehicle Components (X88)
Rear of Vehicle Components (X88)
| Items |
|---|
| 1. E5AK Tail Lamp - Left Outer E5AK Tail Lamp - Left Outer (X88+CZ3)E5AK Tail Lamp - Left Outer (X88-CZ3) |
| 2. E5G Tail Lamp - Left Inner E5G Tail Lamp - Left Inner (X88) |
| 3. E5A Backup Lamp - Left |
| 4. E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 5. T2RR Antenna - Roof Rear T2RR Antenna - Roof Rear X1T2RR Antenna - Roof Rear X2 |
| 6. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 7. E5B Backup Lamp - Right |
| 8. E5H Tail Lamp - Right Inner E5H Tail Lamp - Right Inner (X88) |
| 9. E5AL Tail Lamp - Right Outer E5AL Tail Lamp - Right Outer (X88+CZ3) |
| 10. E4RR Turn Signal Lamp - Right Rear |
| 11. E5AN Stop/Turn Signal Lamp - Right |
| 12. B306H Parking Assist Sensor - Rear Right Outer B306H Parking Assist Sensor - Rear Right Outer |
| 13. B306G Parking Assist Sensor - Rear Right Middle B306G Parking Assist Sensor - Rear Right Middle |
| 14. E7L License Plate Lamp - Left E7L License Plate Lamp - Left (-DRZ)E7L License Plate Lamp - Left (DRZ) |
| 15. B87 Rearview Camera B87 Rearview Camera X1 (-DRZ)B87 Rearview Camera X1 (DRZ)B87 Rearview Camera X2 (DRZ) |
| 16. E7R License Plate Lamp - Right E7R License Plate Lamp - Right (-DRZ)E7R License Plate Lamp - Right (DRZ) |
| 17. S46B Liftgate Unlatch Switch S46B Liftgate Unlatch Switch (X88) |
| 18. B306F Parking Assist Sensor - Rear Left Middle B306F Parking Assist Sensor - Rear Left Middle |
| 19. X88 Trailer Connector X88 Trailer Connector |
| 20. B306E Parking Assist Sensor - Rear Left Outer B306E Parking Assist Sensor - Rear Left Outer |
| 21. E5AM Stop/Turn Signal Lamp - Left |
| 22. E4LR Turn Signal Lamp - Left Rear |
