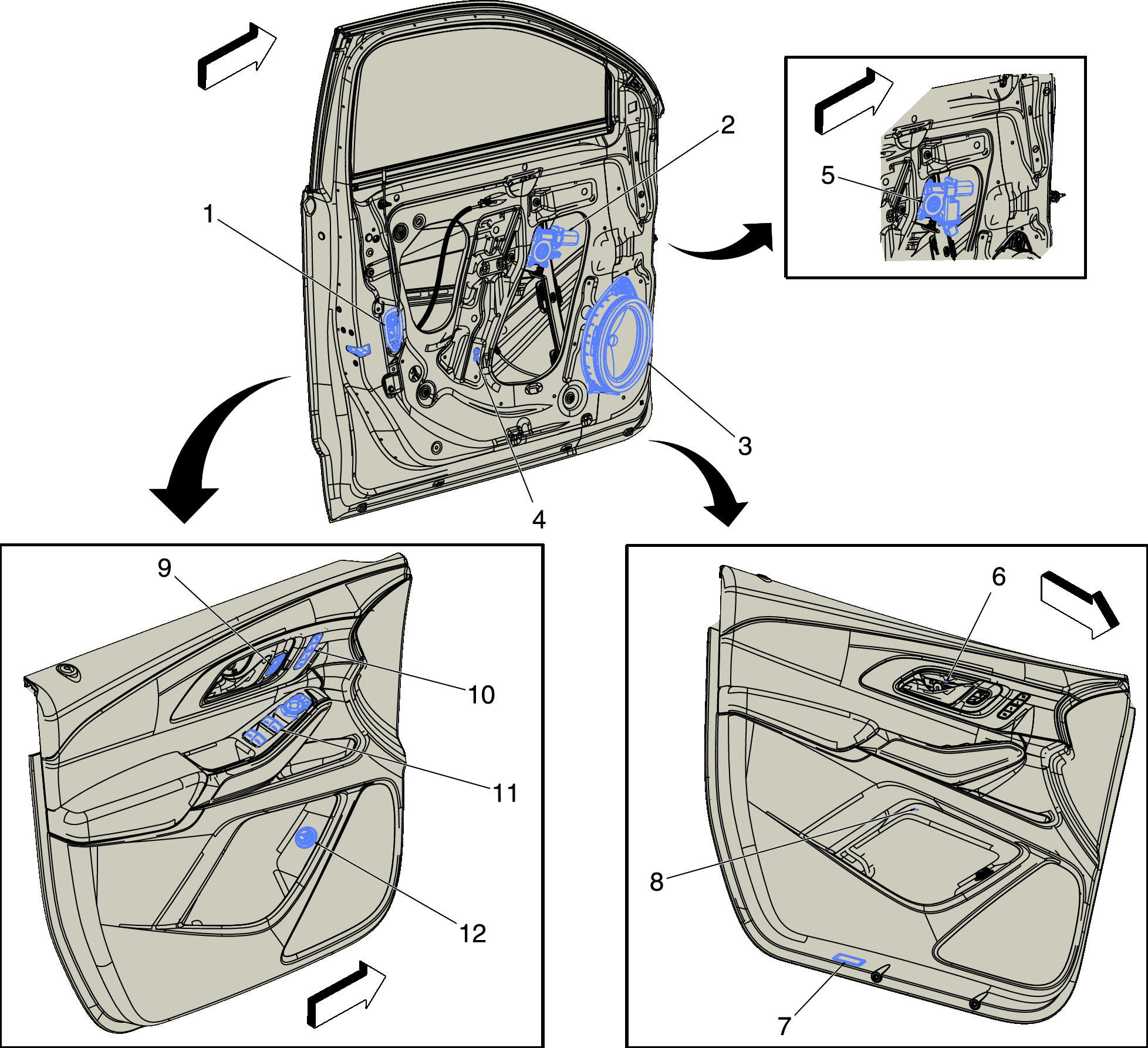

Left Front Door Components (X88)
Left Front Door Components (X88)
| Items |
|---|
| 1. A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver |
| 2. M74D Window Motor - Driver M74D Window Motor - Driver (DR9) |
| 3. P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA)P19AG Speaker - Left Front Door (UQF) |
| 4. B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front |
| 5. M35D Window Motor Module - Driver (Without DR9) M35D Window Motor Module - Driver (-DR9) |
| 6. E63D Flood Lamp - Driver Door Handle E63D Flood Lamp - Driver Door Handle |
| 7. E8D Door Courtesy Lamp - Driver E8D Door Courtesy Lamp - Driver (X88) |
| 8. E55D Flood Lamp - Driver Door Pocket (1LZ or 2LZ) E55D Flood Lamp - Driver Door Pocket (1LZ/2LZ) |
| 9. S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 10. S47D Seat Memory Switch - Driver (AAB) S47D Seat Memory Switch - Driver (AAB) |
| 11. S79D Window Switch - Driver S79D Window Switch - Driver |
| 12. S45B Liftgate Control Switch - Interior (TB5 or TC2) S45B Liftgate Control Switch - Interior |
