Heater and Air Conditioning Remote Control Replacement

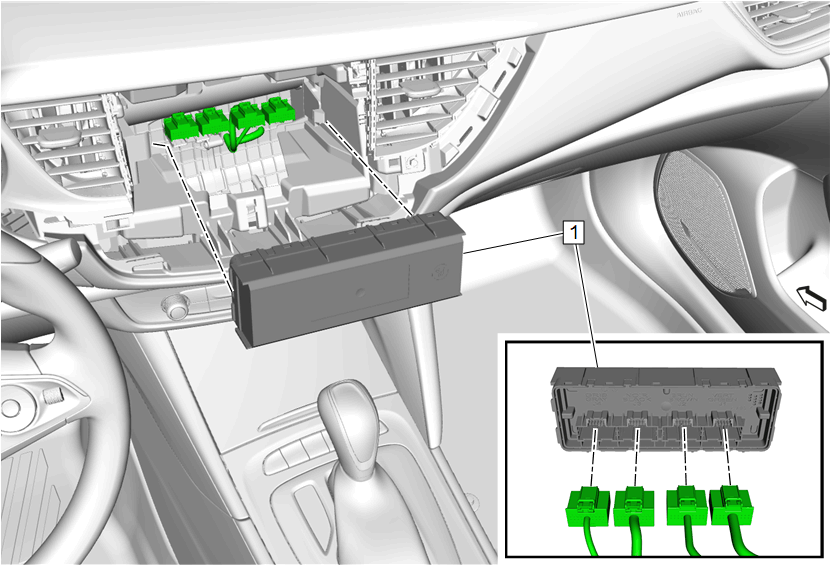

GM4629247
Callout Component Name
Preliminary Procedure
Radio Control Assembly Replacement (IOB) or Radio Control Assembly Replacement (IO5, IO6)
1 Heater and Air Conditioning Remote Control

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect the electrical connectors.
  3. Control Module References - Programming and Setup
