Front Seat Heater Vent Control Module Replacement (GS)

Courtesy of GENERAL MOTORS COMPANY

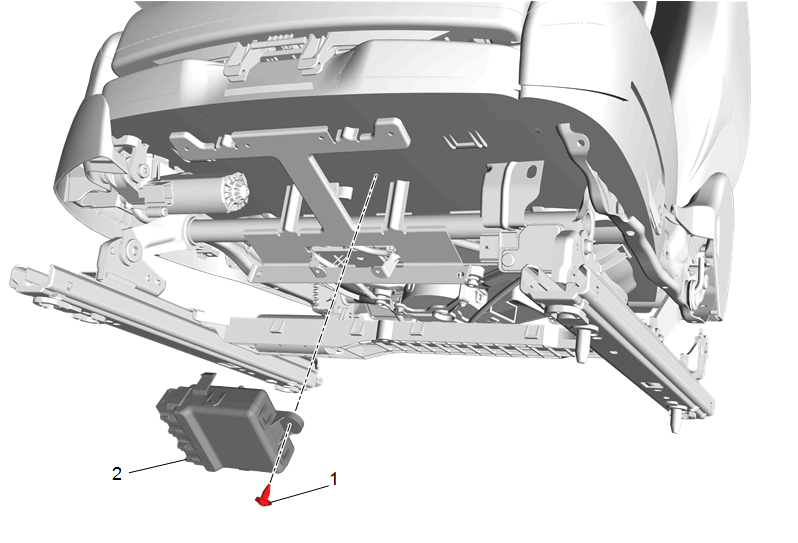

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Adjuster Memory Module Replacement
1	Front Seat Heater Vent Control Module Bolt CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Front Seat Heater Vent Control Module Procedure Release the retaining tabs. Disconnect the electrical connectors.

Callout

Component Name

Front Seat Heater Vent Control Module Bolt

CAUTION:

Tighten
2.5N.m (22 lb in)

Front Seat Heater Vent Control Module

Procedure
