Front Seat Heater Vent Control Module Replacement (Except GS)

Courtesy of GENERAL MOTORS COMPANY

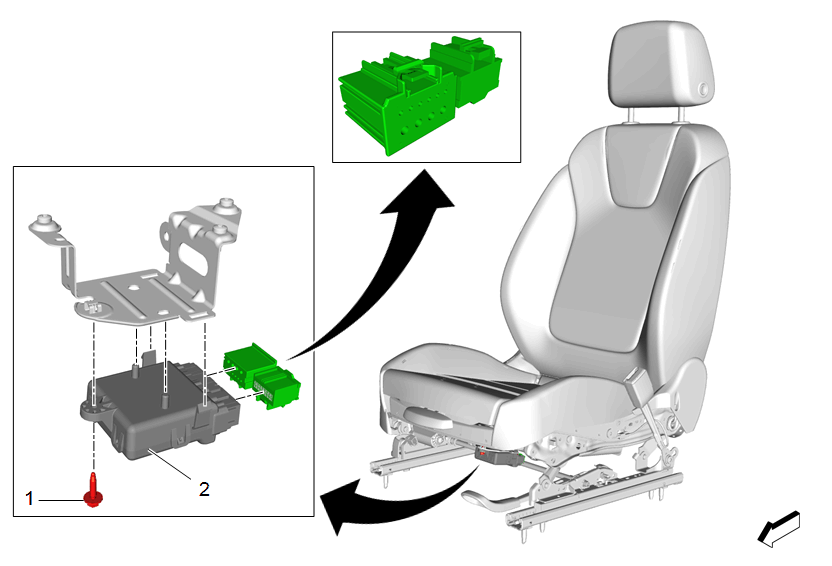

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Front Seat Heater Vent Control Module Bolt CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Front Seat Heater Vent Control Module Procedure Release the retaining tabs. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Disable the SIR system. SIR Disabling and Enabling

Front Seat Heater Vent Control Module Bolt

CAUTION:

Tighten
2.5N.m (22 lb in)

Front Seat Heater Vent Control Module

Procedure
