Sunshade Replacement

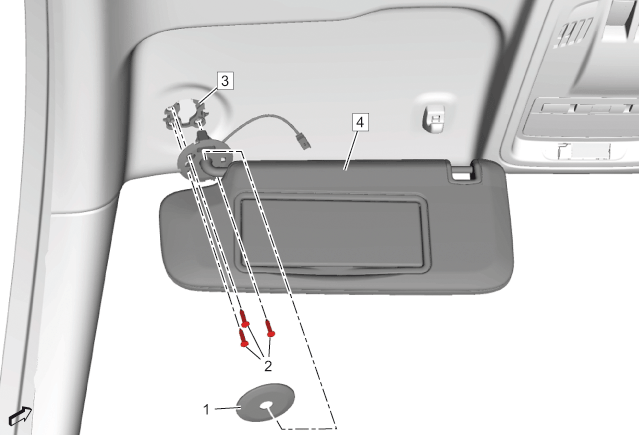

| Callout | Component Name |
|---|---|
| Preliminary Procedures Lower the front of the headliner to access the sunshade electrical connector, if necessary. Refer to Headlining Trim Panel Replacement (Hatchback)Headlining Trim Panel Replacement (Wagon) . |
|
| 1 | Sunshade Fastener Cover |
| 2 | Sunshade Fastener[3x]
CAUTION:
Refer to:Fastener Caution . Tighten 2 N.m (18 lb in) |
| 3 | Sunshade Retainer |
| 4 | Sunshade Assembly Procedure
|
