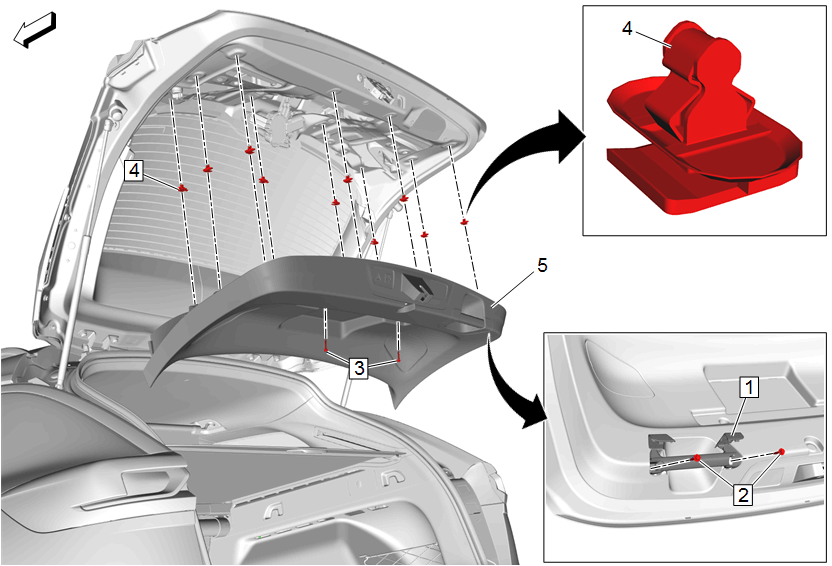

Liftgate Lower Trim Finish Panel Replacement (5-Door Wagon 35)
| Callout | Component Name |
|---|---|
| 1 | Liftgate Inside Pull Handle Cover Procedure Unclip the cover and fold upwards. |
| 2 | Liftgate Inside Pull Handle Bolt [2x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 3 | Liftgate Lower Trim Finish Panel Bolt[2x] Tighten 2.5 N.m (22 lb in) |
| 4 | Liftgate Lower Trim Finish Panel Retainer [10x] Procedure Use a flat bladed plastic tool to remove. |
| 5 | Liftgate Lower Trim Finish Panel Procedure Unclip from liftgate upper trim finish panel. |
