Cargo Tie Down Loop Replacement

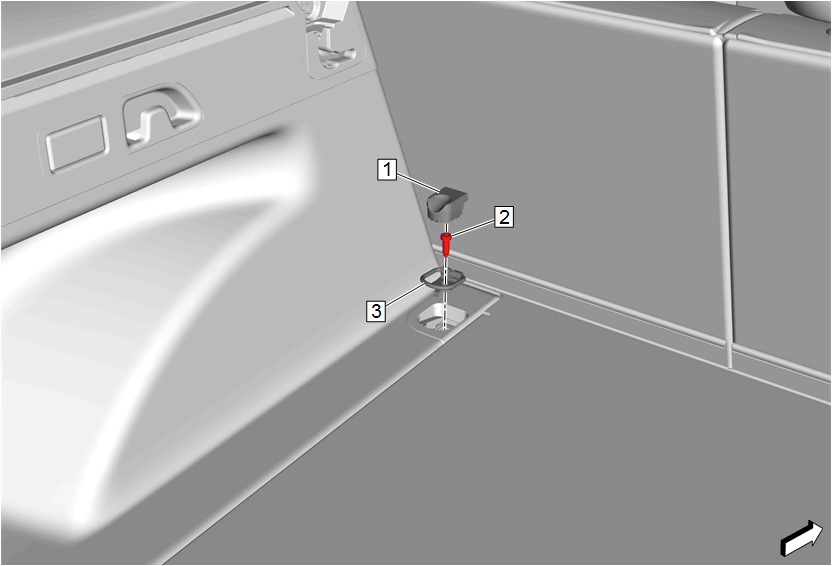

GM4742682
Callout Component Name
1 Cargo Tie Down Loop Bolt Cap
2 Carog Tie Down Loop Bolt
CAUTION:

Fastener Caution


Tighten
20N.m (15 lb ft)
3 Cargo Tie Down Loop
