Cargo Partition Track Replacement

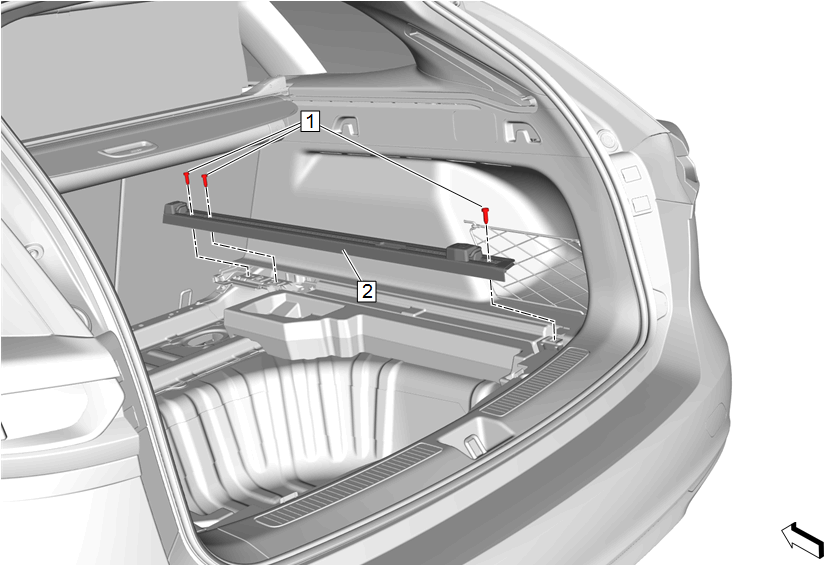

GM4738710
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Panel Trim - Remove
1 Cargo Partition Track Bolt[3x]
CAUTION:

Fastener Caution


Tighten
20 N.m (15 lb ft)
2 Cargo Partition Track
Procedure
Unclip@Rear Compartment Side Trim
