Instrument Panel Trim Plate Replacement

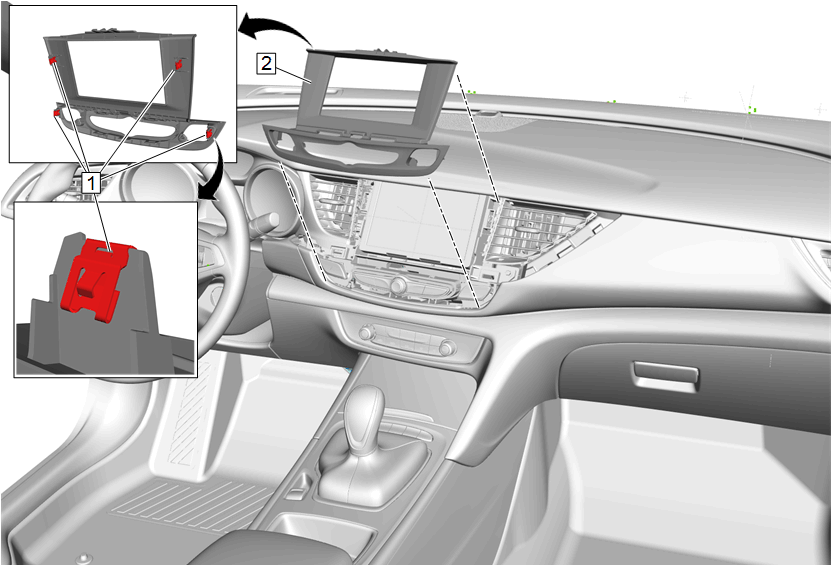

GM4692952Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
1 Instrument Panel Trim Plate Retainer [4x]
2 Instrument Panel Trim Plate
Procedure
Use a flat bladed plastic tool to remove.
