Instrument Panel Fuse Block Access Hole Cover Replacement

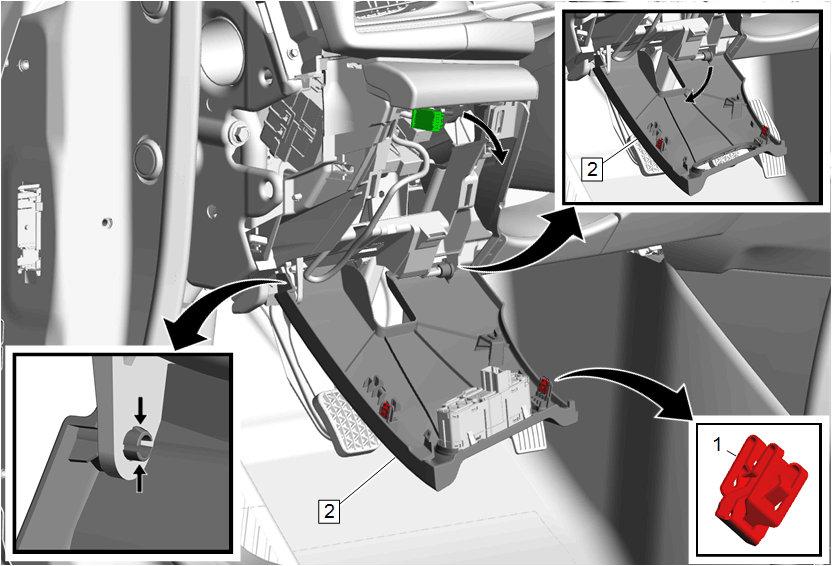

GM4645622Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
1 Instrument Panel Fuse Block Access Hole Cover Retainer [2x]
2 Instrument Panel Fuse Block Access Hole Cover

Procedure

  1. Pull and flip down the instrument panel fuse block access hole cover.
  2. Disconnect all electrical connectors.
  3. Headlamp Switch - Remove - Headlamp Switch Replacement
  4. Instrument Panel Fuse Block Access Hole Cover - Unclip
