Rear End Spoiler Replacement (5-Door Wagon 35)

Courtesy of GENERAL MOTORS COMPANY

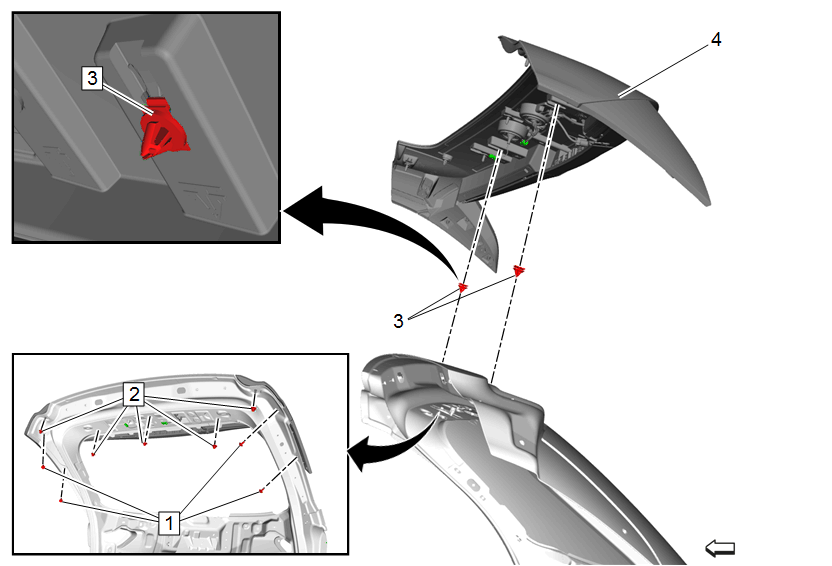

Callout	Component Name
NOTE: A second technician is required. Preliminary Procedure Liftgate Upper Trim Finish Panel Replacement
1	Rear End Spoiler Bolt [4x] CAUTION: Fastener Caution Tighten 9N.m (80 lb in)
2	Rear End Spoiler Nut [5x] Tighten 9N.m (80 lb in)
3	Rear End Spoiler Retainer [2x]
4	Rear End Spoiler Procedure Disconnect the electrical connector. Disconnect the rear window washer nozzle hose. Use a flat bladed plastic tool to remove. High Mount Stop Lamp - Remove - High Mount Stop Lamp Replacement (Wagon)High Mount Stop Lamp Replacement (Hatchback)
