Tail Lamp Replacement (5-Door Wagon 35)

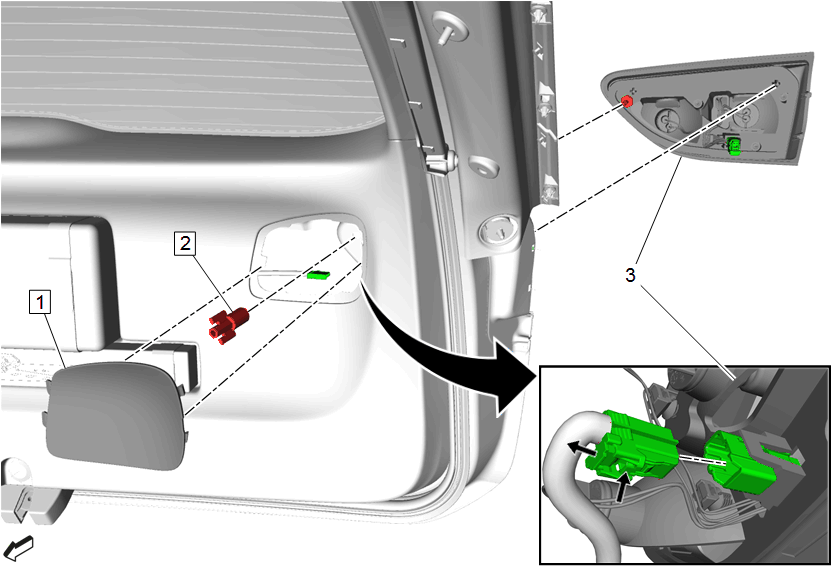

GM4605415
Callout Component Name
1 Liftgate Lower Trim Finish Panel Service Flap
Procedure
Unlock the retaining tabs.
2 Tail Lamp Nut
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
3 Tail Lamp

Procedure

  1. Unlock the retaining tabs.
  2. Disconnect the electrical connector.
  3. Replace bulbs as necessary.
