Lighting System - Repair Instructions
>>
Repair Instructions
>>

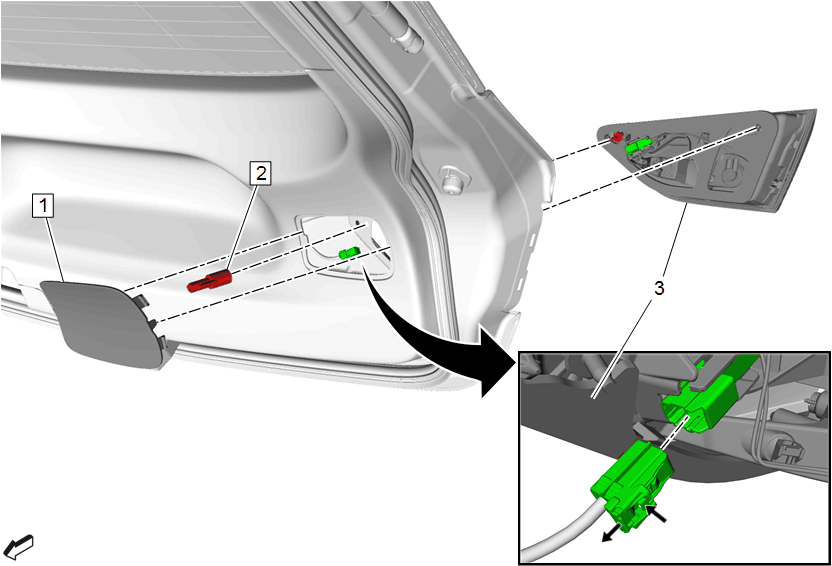

Tail Lamp Replacement (5-Door Hatchback 68)
Tail Lamp Replacement (5-Door Hatchback 68)
Callout
Component Name
1
Liftgate Lower Trim Finish Panel Service Flap
Procedure
Unlock the retaining tabs.
2
Tail Lamp Nut
CAUTION:
Fastener Caution
Tighten
2.5 N.m (22 lb in)
3
Tail Lamp
Procedure
Unlock the retaining tabs.
Disconnect the electrical connector.
Replace bulbs as necessary.
