Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement

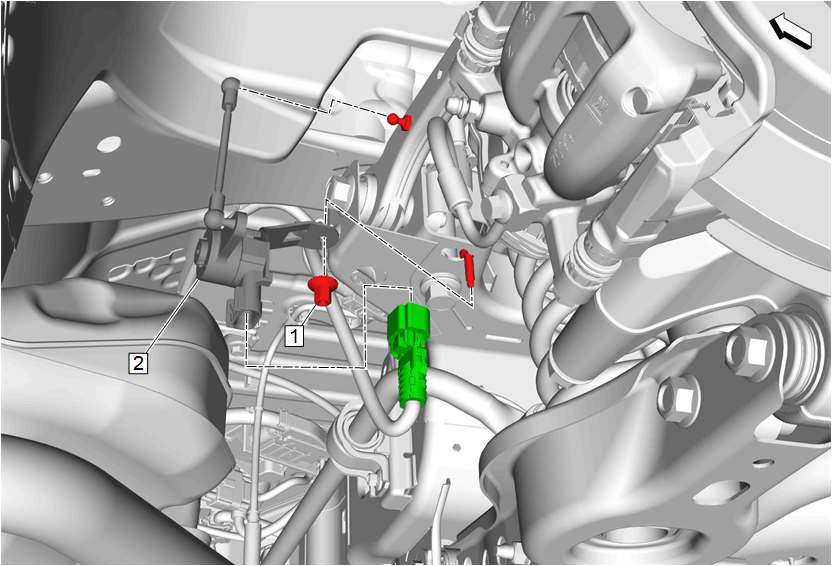

Callout	Component Name
Preliminary Procedure Tire and Wheel Removal and Installation
1	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Procedure Disconnect the electrical connector. Unlock the retaining tabs. Run all necessary programming and setup procedures. Control Module References

Callout

Component Name

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Suspension Automatic Forward Lighting Leveling Position Sensor

Procedure
