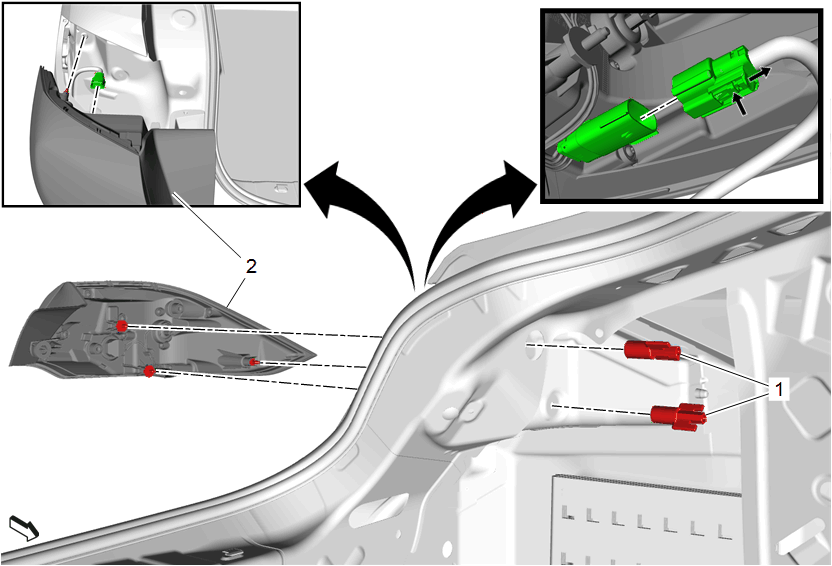

Rear Body Structure Stop Lamp Replacement (5-Door Hatchback 68)

Callout	Component Name
Preliminary Procedure Open the rear compartment side trim panel service flap.
1	Rear Body Structure Stop Lamp Nut [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Body Structure Stop Lamp Procedure Unlock the retaining tabs. Disconnect the electrical connector. Replace bulbs as necessary.

Callout

Component Name

Preliminary Procedure
Open the rear compartment side trim panel service flap.

Rear Body Structure Stop Lamp Nut [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Body Structure Stop Lamp

Procedure
