Repair Instructions
>>
Headlamp Bulb Replacement - Right Side (Low Beam)
Headlamp Bulb Replacement - Right Side (Low Beam)

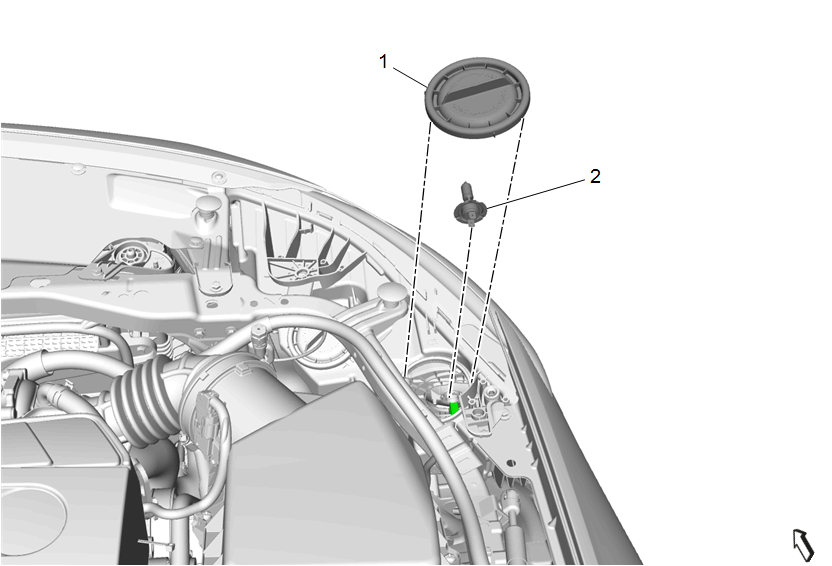

Callout
Component Name
1
Headlamp Bulb Access Cover
WARNING:
Halogen Bulb Warning
Procedure
Rotate the cover counterclockwise to remove.
2
Headlamp Bulb - Low Beam
Procedure
Release the bulb retainer spring.
Disconnect the electrical connectors.
