Lighting System - Repair Instructions
>>
Repair Instructions
>>
Headlamp Bulb Replacement - Right Side (High Beam)
Headlamp Bulb Replacement - Right Side (High Beam)

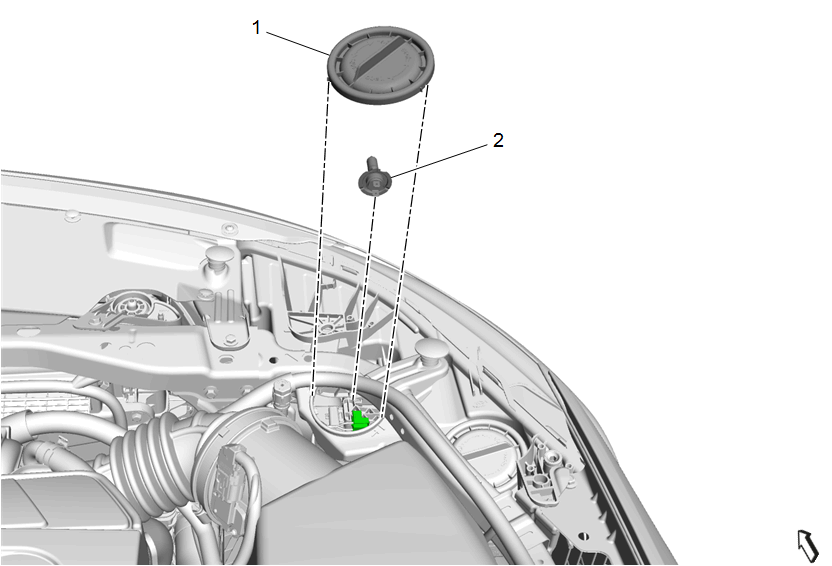

Callout
Component Name
1
Headlamp Bulb Access Cover
WARNING:
Halogen Bulb Warning
Procedure
Rotate the cover counterclockwise to remove.
2
Headlamp Bulb - High Beam
Procedure
Disconnect the electrical connector.
Unlock the retaining tabs.
