Repair Instructions
>>
Headlamp Bulb Replacement - Left Side (Low Beam)

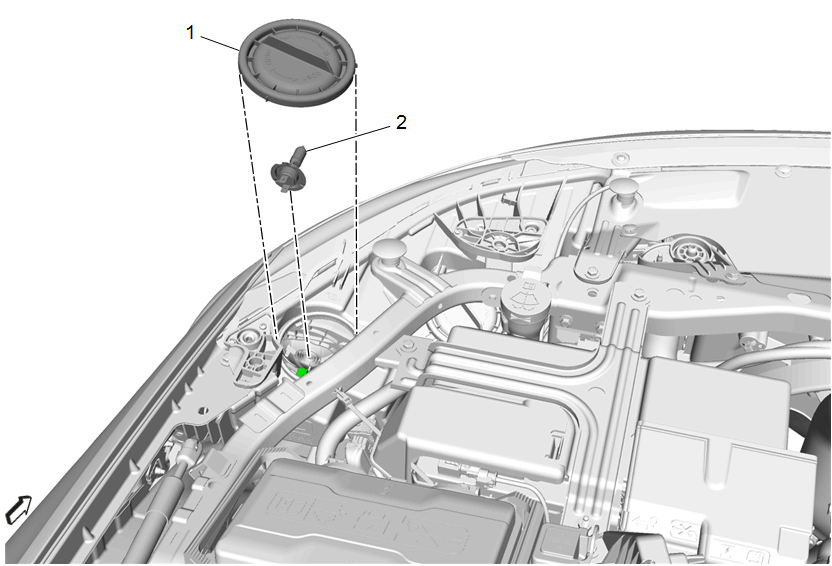

Headlamp Bulb Replacement - Left Side (Low Beam)
Callout
Component Name
1
Headlamp Bulb Access Cover
WARNING:
Halogen Bulb Warning
Procedure
Rotate the cover counterclockwise to remove.
2
Headlamp Bulb - Low Beam
Procedure
Release the bulb retainer spring
Disconnect the electrical connectors.
