Front Suspension Automatic Forward Lighting Position Sensor Replacement

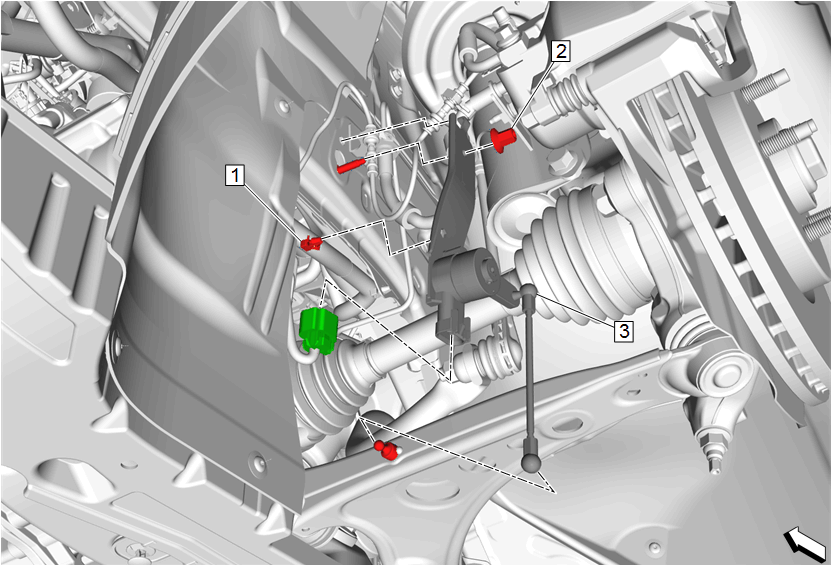

GM4775146
Callout Component Name
Preliminary Procedure
Tire and Wheel Removal and Installation
1 Retainer
2 Front Suspension Automatic Forward Lighting Position Sensor Nut
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
3 Front Suspension Automatic Forward Lighting Position Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Unlock the retaining tabs.
  3. Run all necessary programming and setup procedures. Control Module References
