Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

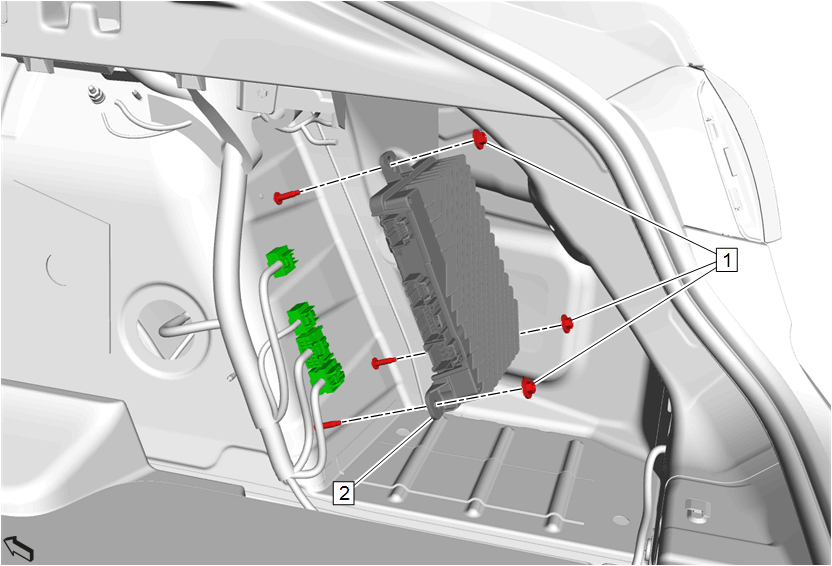

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Right Side (Hatchback)Rear Compartment Side Trim Replacement - Right Side (5-Door Wagon 35)
1	Radio Speaker Amplifier Nut [3x] CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Control Module References - Programming and Setup

Callout

Component Name

Radio Speaker Amplifier Nut [3x]

CAUTION:

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure
