X931 Body Harness to Liftgate Extension Harness (Wagon+UVB)
|
|
|

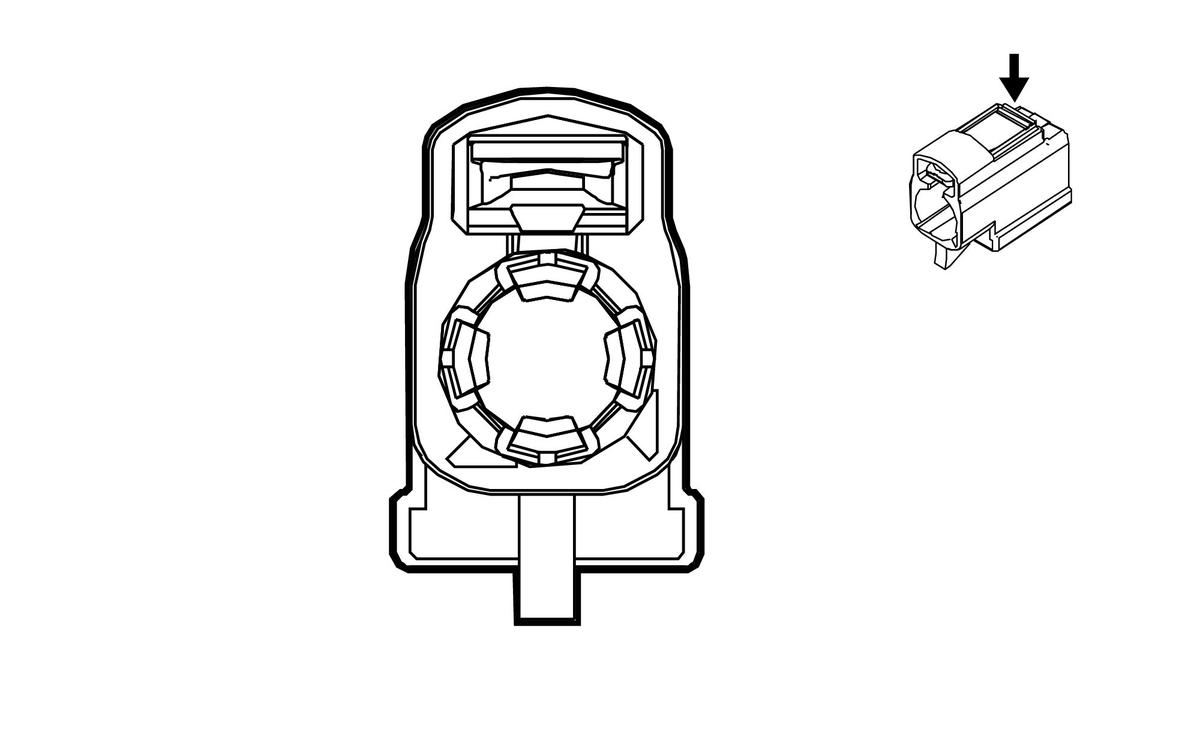

Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 13597572
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type (OG)
|

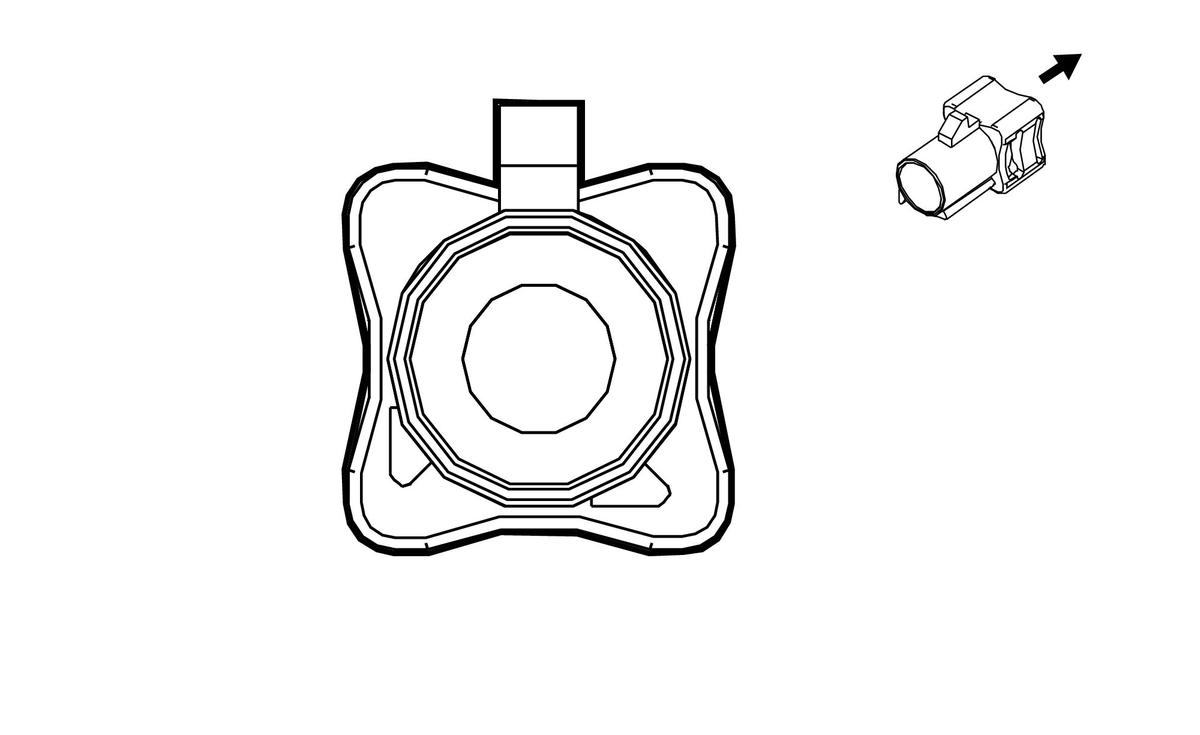

Connector Part Information
- Harness Type: Liftgate Extension COAX
- OEM Connector: 13597573
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
I |
- |
(ISRVM) Camera Video Signal |
- |
- |
Coax |
- |
I |
- |
