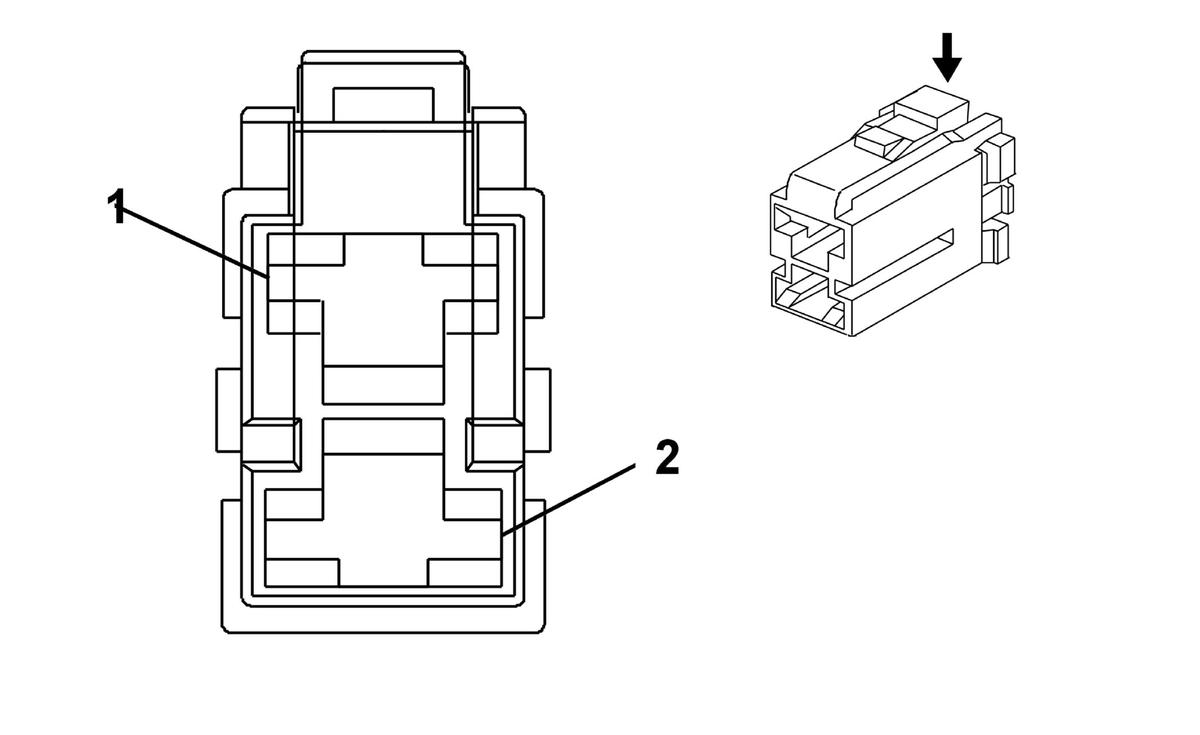

X209 Instrument Panel Harness to Body Harness
|
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13594532
- Service Connector: 19368883
- Description: 2-Way F 9.5 Series (BU)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13594531
- Service Connector: 13579723
- Description: 2-Way M 375 Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-21 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
4 |
RD/GN |
1540 |
I |
- |
Battery Positive Voltage |
2 |
4 |
RD/WH |
342 |
II |
- |
