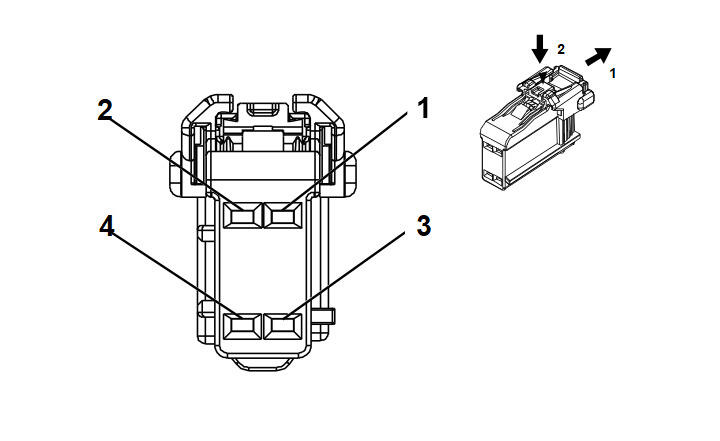

M73A Seat Blower Motor - Driver Back (KU9)
|
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-7789
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/WH |
639 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 2 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 3 |
0.35 |
GN/VT |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
