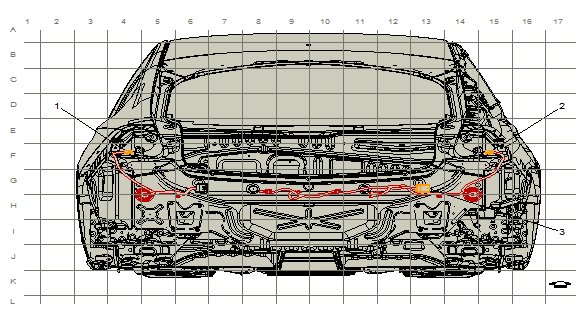

Rear of Vehicle Harness Routing

G00406206Courtesy of GENERAL MOTORS COMPANY
Items
1 X410 Body Harness to Left Tail Lamp Harness X410 Body Harness to Left Tail Lamp Harness
2 X420 Body Harness to Right Tail Lamp Harness X420 Body Harness to Right Tail Lamp Harness
3 X404 Rear Fascia Harness to Body Harness X404 REAR FASCIA HARNESS TO BODY HARNESS (TC2/UD5/UD7)
