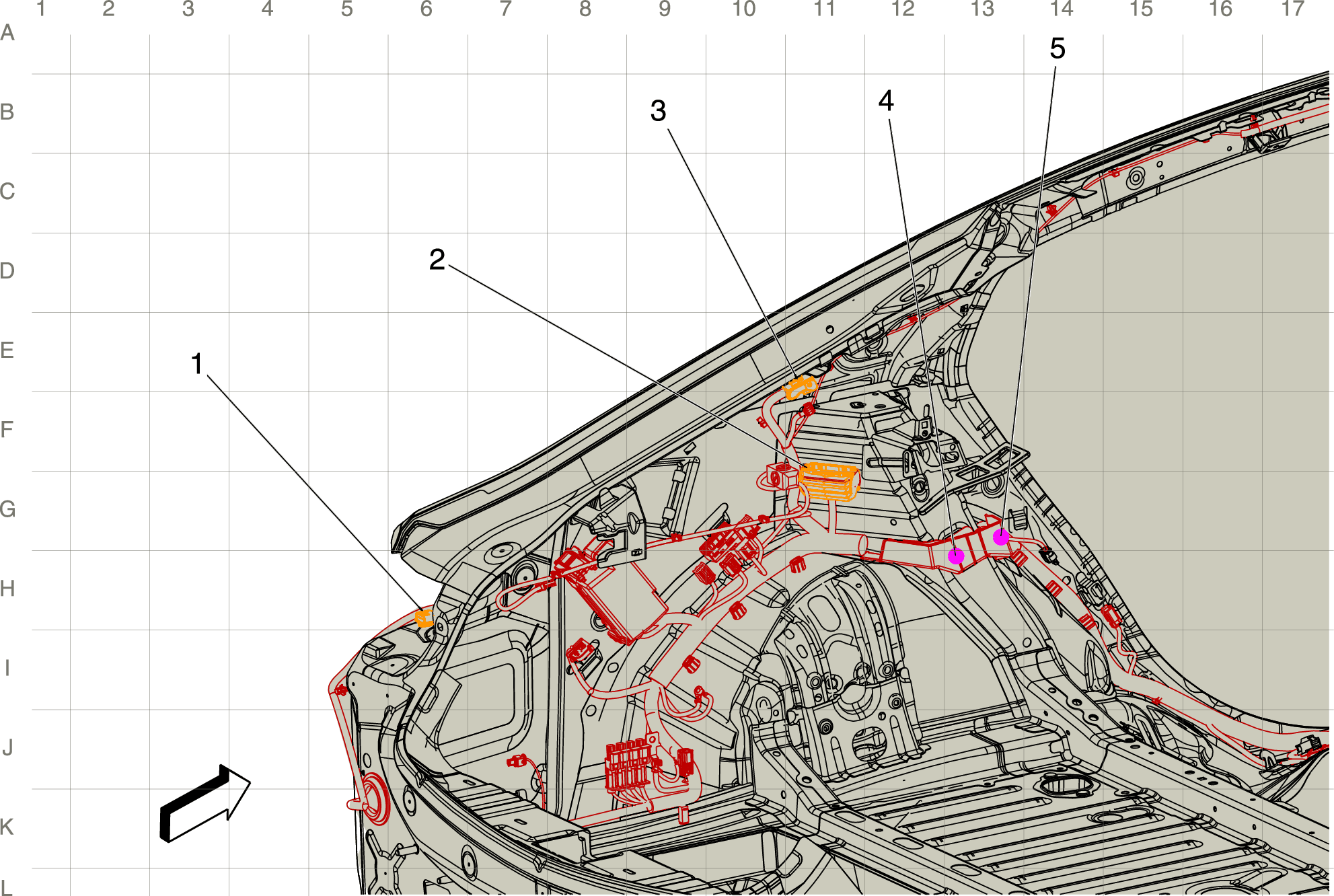

Luggage Compartment Harness Routing View

GM4801273Courtesy of GENERAL MOTORS COMPANY
Items
1 X410 Body Harness to Left Tail Lamp Harness X410 Body Harness to Left Tail Lamp Harness
2 X400 Headliner Harness to Body Harness X400 Headliner Harness to Body Harness
3 X900 Liftgate Extension Harness to Body Harness X900 Liftgate Extension Harness to Body Harness
4 J361 Body Harness
5 J401 Body Harness
