Liftgate Harness Routing (HATCHBACK)

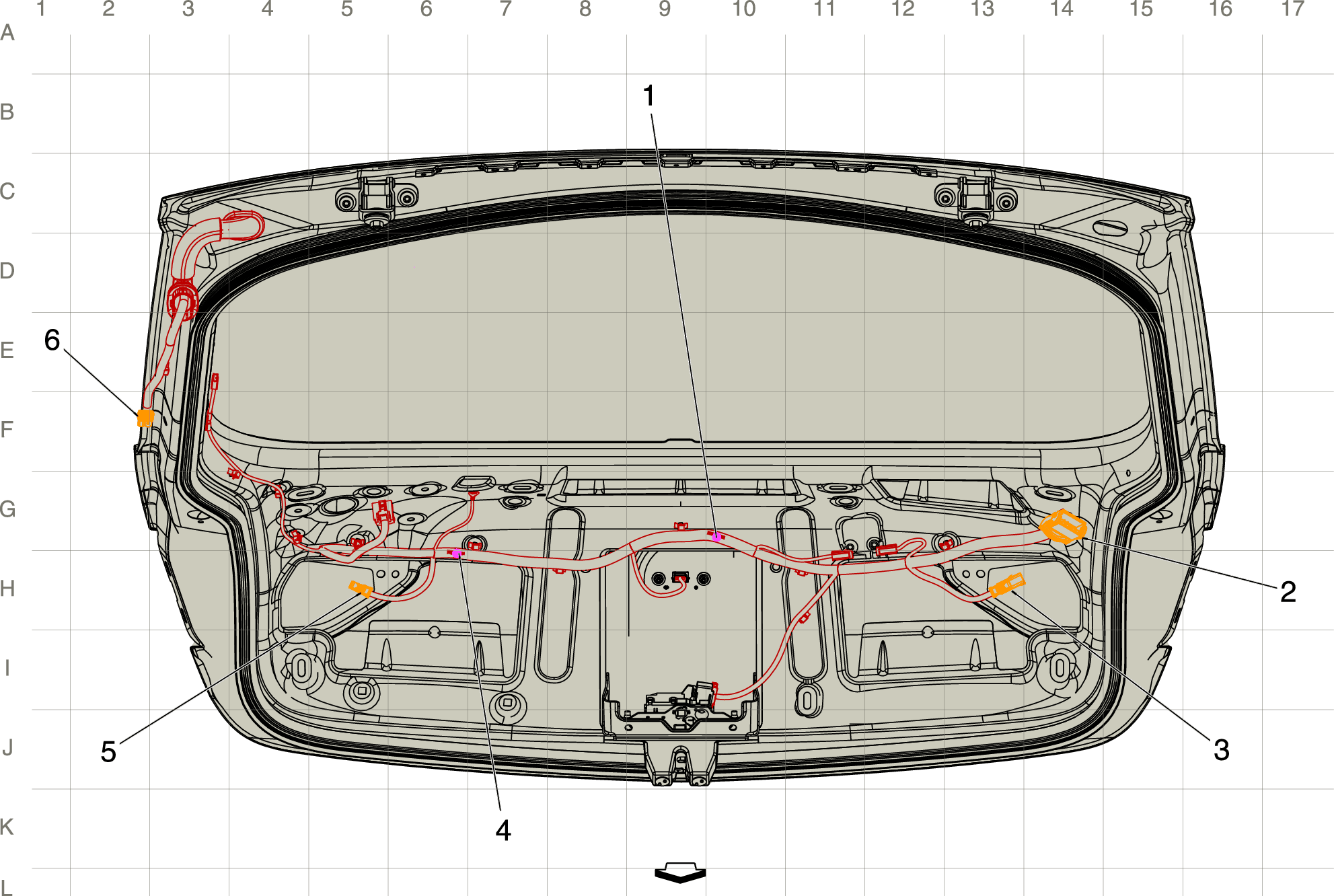

GM4801269Courtesy of GENERAL MOTORS COMPANY
Items
1 J901 Right Liftgate Tail Lamp Harness
2 X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Extension Harness to Liftgate Harness
3 X910 Liftgate Harness to Left Liftgate Taillamp Harness X910 Liftgate Harness to Left Liftgate Tail Lamp Harness
4 J900 Left Liftgate Tail Lamp Harness
5 X920 Liftgate Harness to Right Liftgate Taillamp Harness X920 Liftgate Harness to Right Liftgate Tail Lamp Harness
6 X905 Body Harness to Radio Antenna Harness X905 Body Harness to Radio Antenna Harness (-I30)X905 Body Harness to Radio Antenna Harness (I30)
