Liftgate Extension Harness Routing (HATCHBACK)

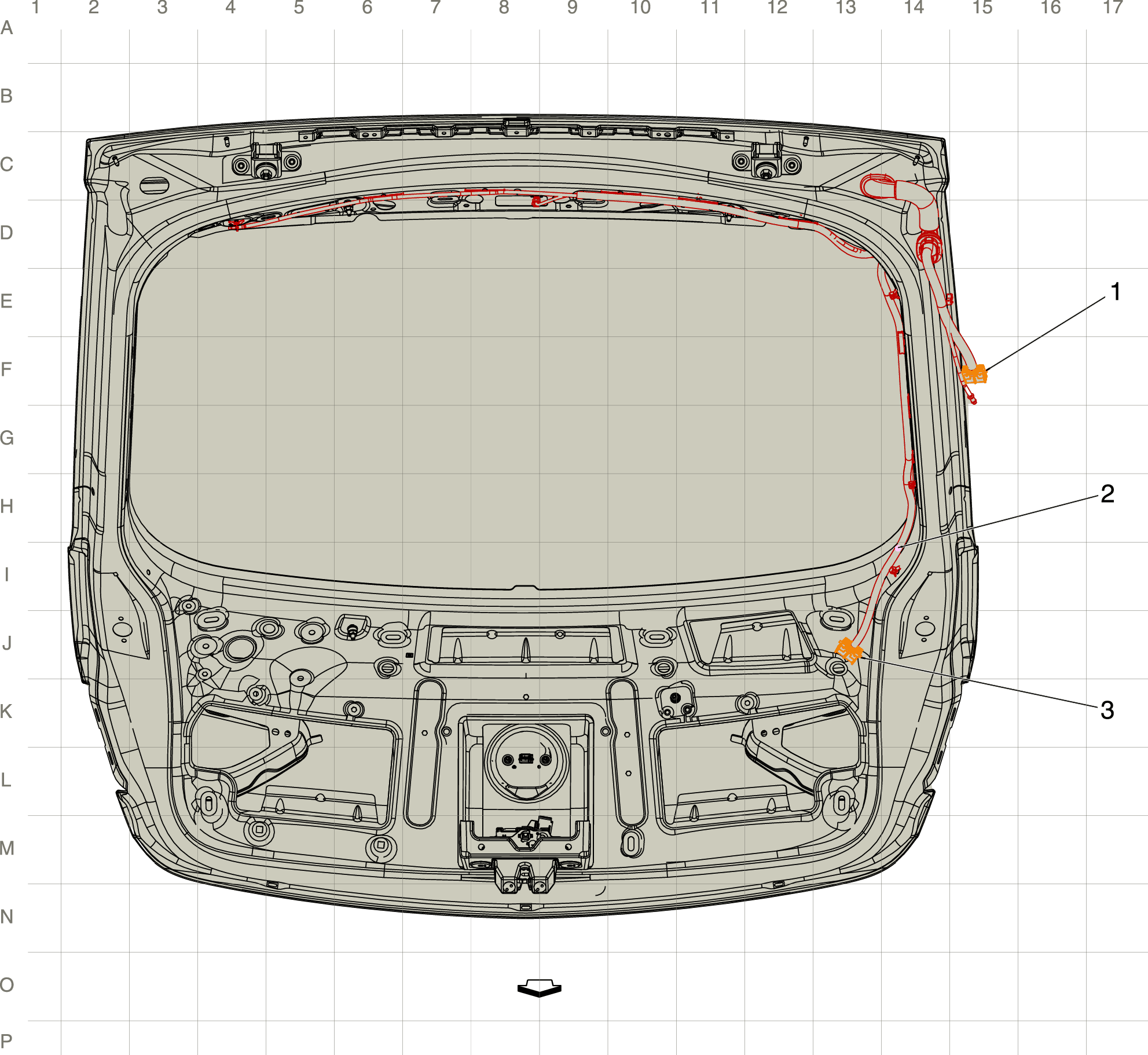

GM4801278Courtesy of GENERAL MOTORS COMPANY
Items
1 X900 Liftgate Extension Harness to Body Harness X900 Liftgate Extension Harness to Body Harness
2 J902 Liftgate Harness
3 X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Extension Harness to Liftgate Harness
