Body Harness Routing - Engine Compartment - Left

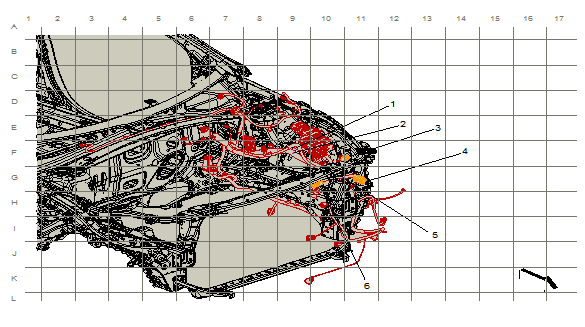

G00406202Courtesy of GENERAL MOTORS COMPANY
Items
1 J100 Body Harness
2 J131 Body Harness
3 X110 Body Harness to Left Headlamp Assembly Harness X110 Body Harness to Left Headlamp Assembly Harness
4 X118 Body Harness to Cooling Fan Harness X118 Body Harness to Cooling Fan Harness
5 J135 Body Harness
6 X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness
