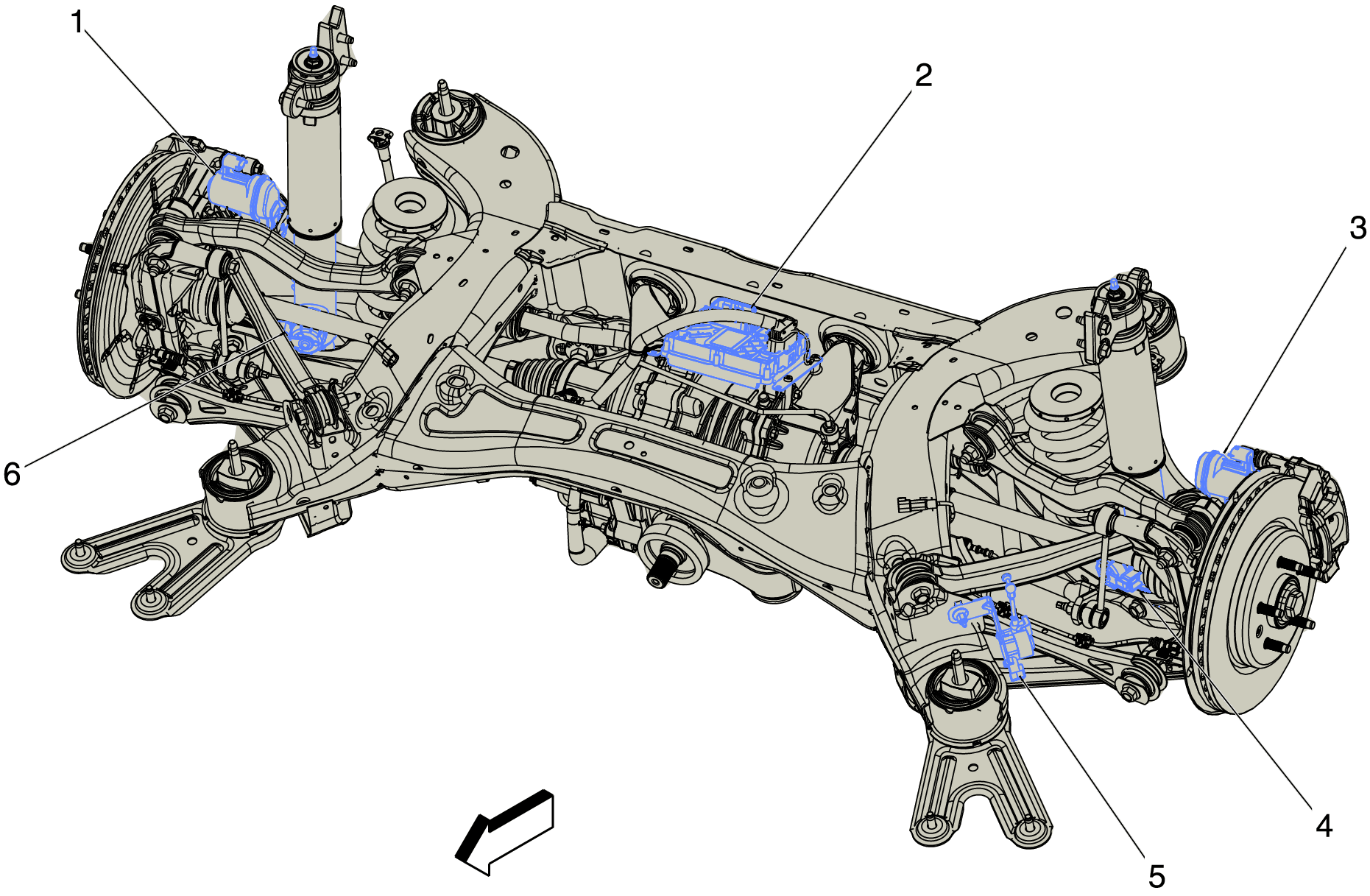

Rear Axle Components (F46)
Rear Axle Components (F46)
| Items |
|---|
| 1 M104R Park Brake Actuator - Right M104R Park Brake Actuator - Right |
| 2 K47 Rear Differential Clutch Control Module (F46) K47 Rear Differential Clutch Control Module X1 (F46) |
| 3 M104L Park Brake Actuator - Left M104L Park Brake Actuator - Left |
| 4 Q37LR Shock Absorber Actuator - Left Rear (F45) Q37LR Shock Absorber Actuator - Left Rear (F45) |
| 5 B51R Suspension Height Sensor - Rear (T4L) B51R Suspension Height Sensor - Rear (TR7-F45) |
| 6 Q37RR Shock Absorber Actuator - Right Rear (F45) Q37RR Shock Absorber Actuator - Right Rear (F46) |
