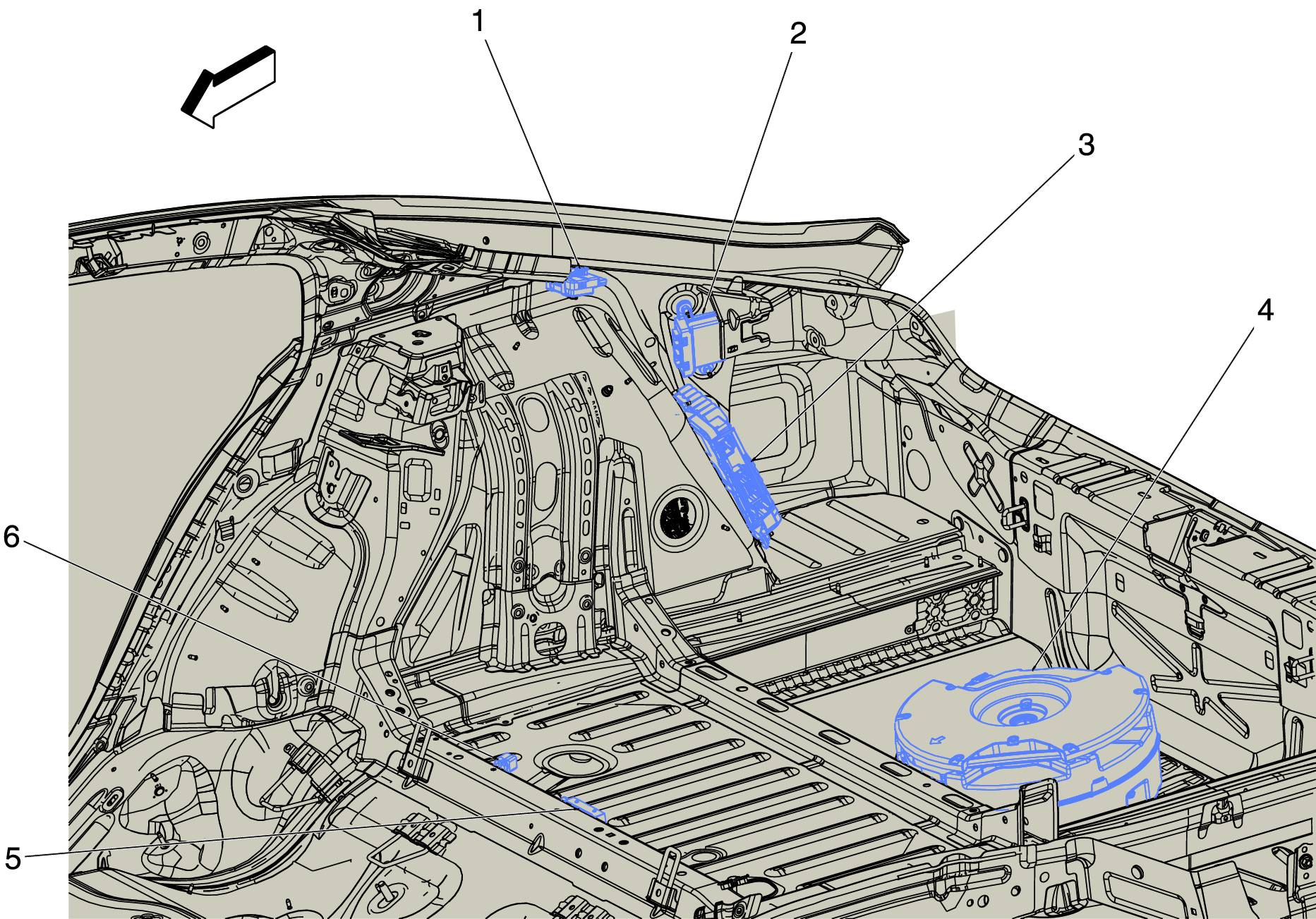

Luggage Compartment - Center and Right Side Components
Luggage Compartment - Center and Right Side Components
| Items |
|---|
| 1 T23 Radio Antenna Amplifier (WAGON) T23 Radio Antenna Amplifier (Wagon+(IOS/IOT))T23 Radio Antenna Amplifier X1 (Wagon+(US3+I30))T23 Radio Antenna Amplifier X1 (Wagon+(US3-I30))T23 Radio Antenna Amplifier X3 (IOB/IOR) |
| 2 K108 Active Noise Cancellation Module (NKC) K108 Active Noise Cancellation Module X1 (NKC+UQ3)K108 Active Noise Cancellation Module X2 (NKC+UQ3)K108 Active Noise Cancellation Module X3 (NKC+UQ3) |
| 3 T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 (UQA-I30)T3 Audio Amplifier X2 (UQA)T3 Audio Amplifier X3 (UQA)T3 Audio Amplifier X4 (UQA) |
| 4 P19AC Speaker - Subwoofer (UQA/(NKC+UQ3)) P19AC Speaker - Subwoofer (UQA/UQ3) |
| 5 T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment |
| 6 R6A Terminating Resistor - High Speed Bus (F46) R6A Terminating Resistor - High Speed Bus (F46) |
