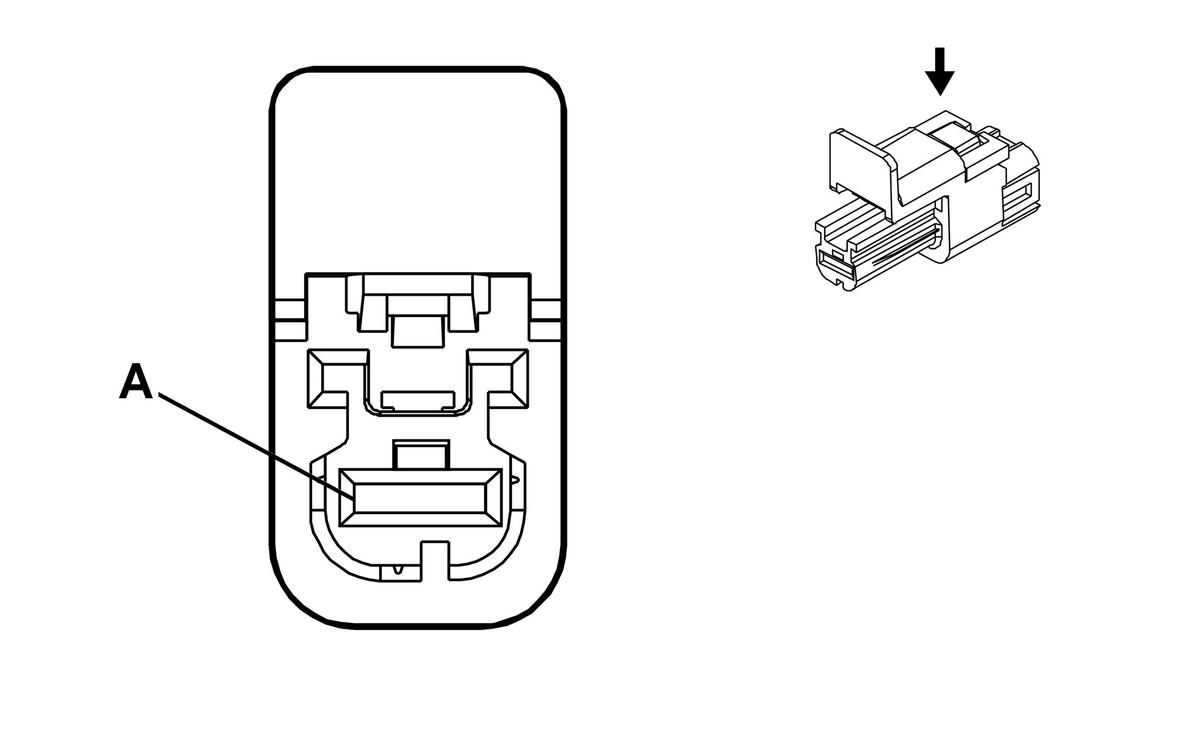

X50A Fuse Block - Underhood X9
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13596077
- Service Connector: 19354070
- Description: 1-Way F 6.3 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
6 |
BN/BU |
104 |
Glow Plug Control |
I |
- |
