Home >> Buick >> 2018 >> Regal Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Outlets >> Schematic and Wiring Diagrams >> Cigar Lighter/Power Outlet Wiring Schematics >> 12 Volt DC Power Outlets and Wireless Charger (K4C)

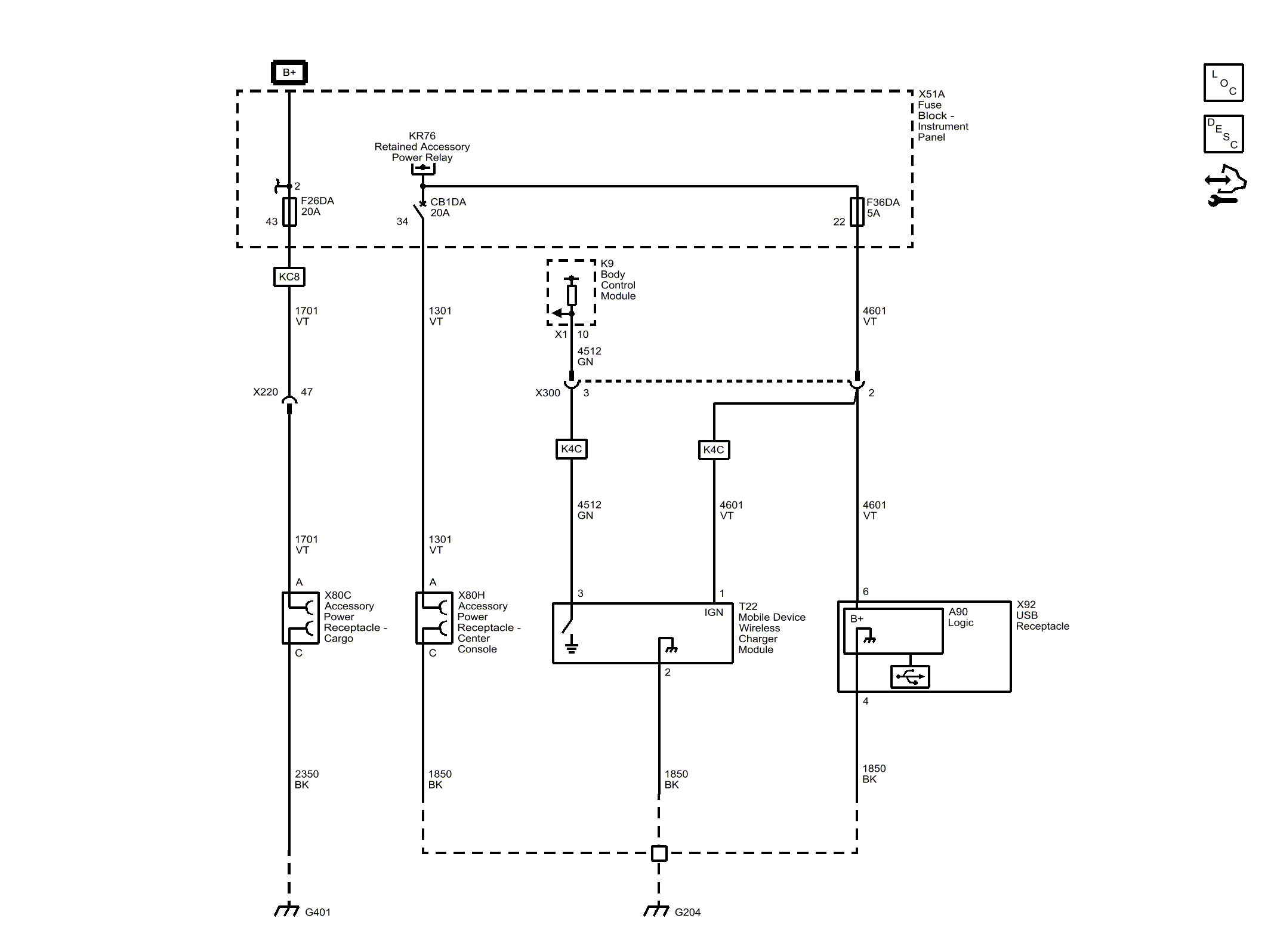

12 Volt DC Power Outlets and Wireless Charger (K4C)

GM4776219
