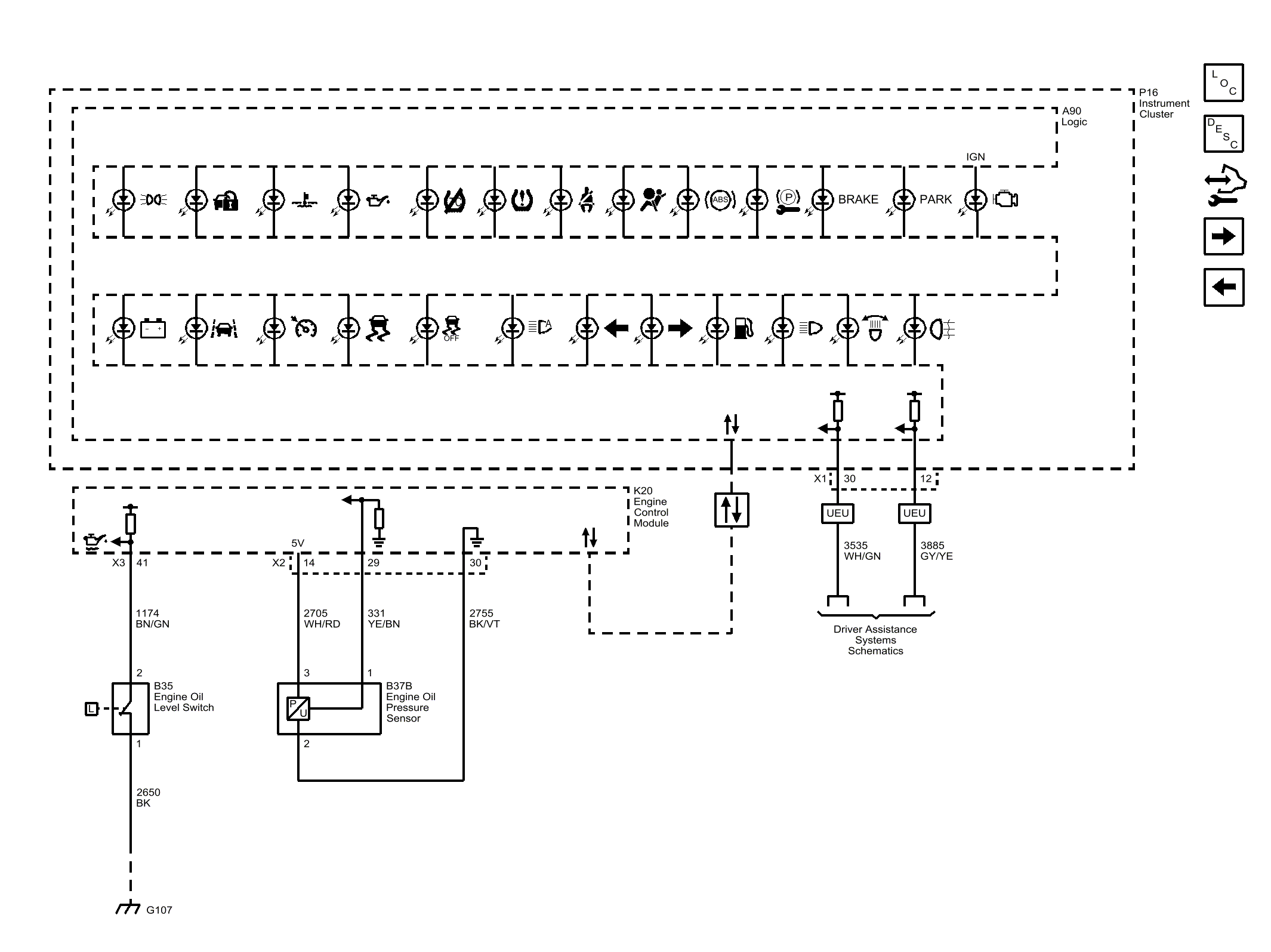

Home >> Buick >> 2018 >> Regal Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic and Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Indicators (LTG)
