Home >> Buick >> 2018 >> Regal Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic and Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Driver Information and Shift Lever Indicator

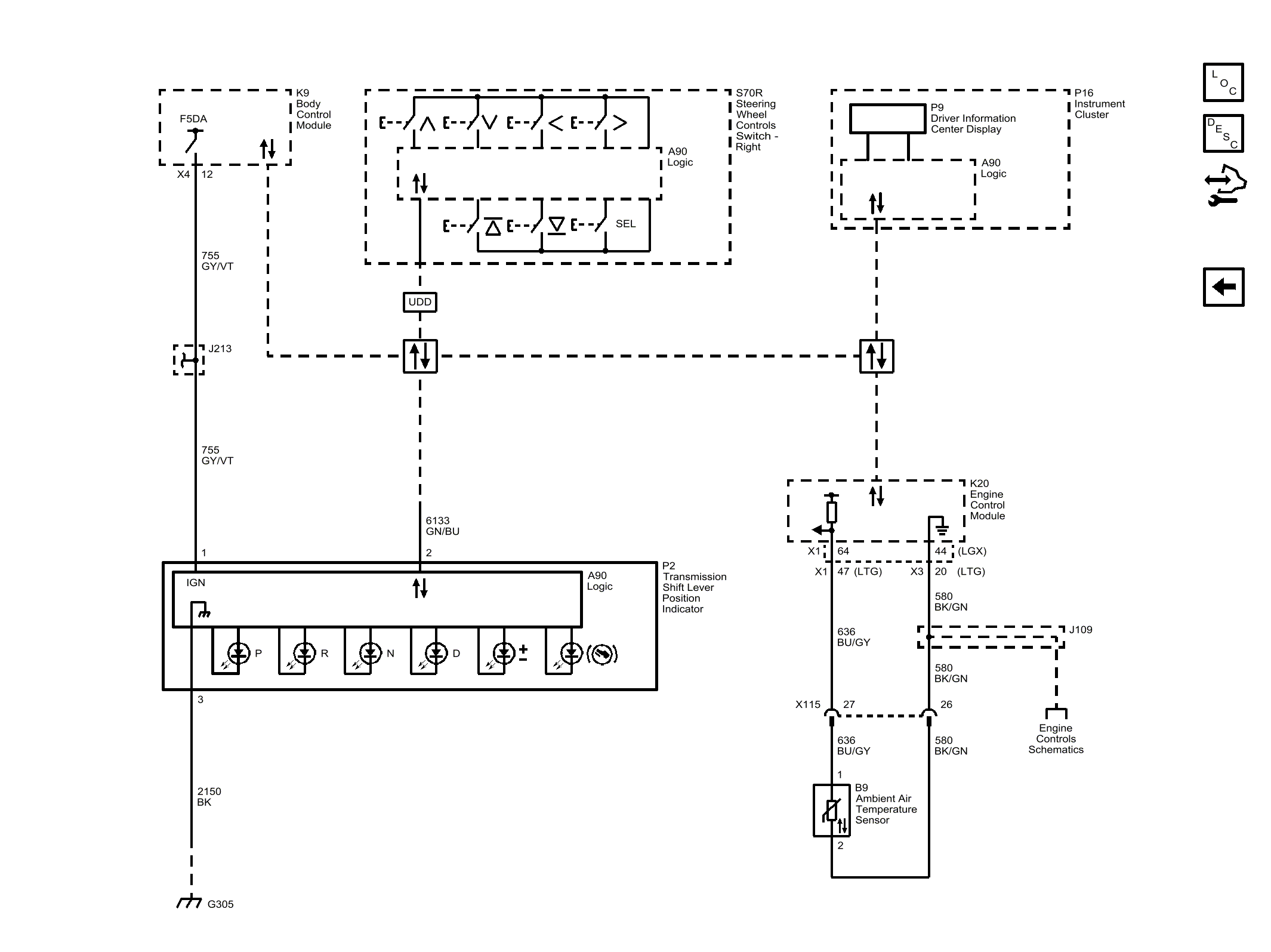

Driver Information and Shift Lever Indicator

GM4776038

Courtesy of GENERAL MOTORS COMPANY
