Underbody Front Air Deflector Replacement

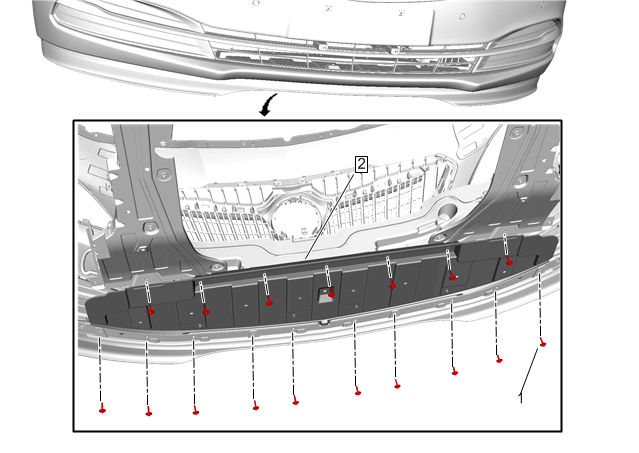

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Bumper Fascia Air Deflector Bolt [17x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Air Deflector Procedure Release the retaining tabs. Transfer components as necessary. Remove the support and lower the vehicle.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle

Front Bumper Fascia Air Deflector Bolt [17x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Fascia Air Deflector

Procedure
