Drive Motor Battery Cooling Blower Cover Replacement (LHN)

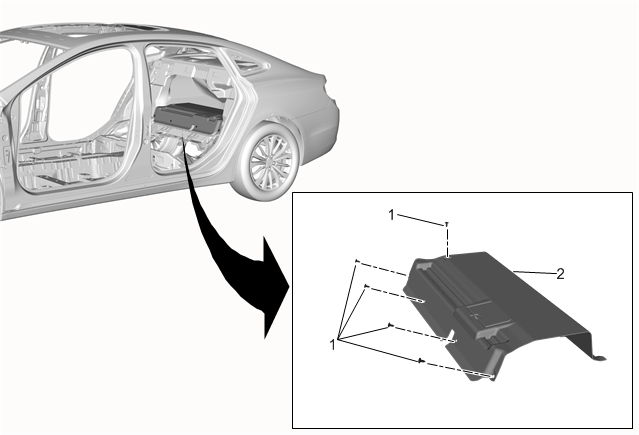

GM4762549
Callout Component Name

Preliminary Procedures

  1. Remove Rear Compartment Floor Panel Trim. Rear Compartment Floor Panel Trim Replacement
  2. Fold down rear seat to access retainers.
1 Drive Motor Battery Cooling Blower Cover Retainer [5x]
Procedure
Use a flat bladed plastic trim tool.
2 Drive Motor Battery Cooling Blower Cover
