Instrument Panel Center Trim Pad Replacement

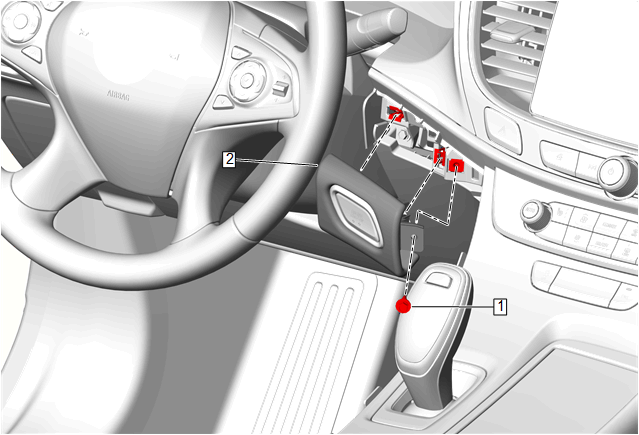

Callout	Component Name
Preliminary Procedure Front Floor Console Applique Replacement
1	Instrument Panel Center Trim Pad Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Center Trim Pad Procedure Using a flat-bladed plastic trim tool, release the retainer clips. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Instrument Panel Center Trim Pad Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Center Trim Pad

Procedure
