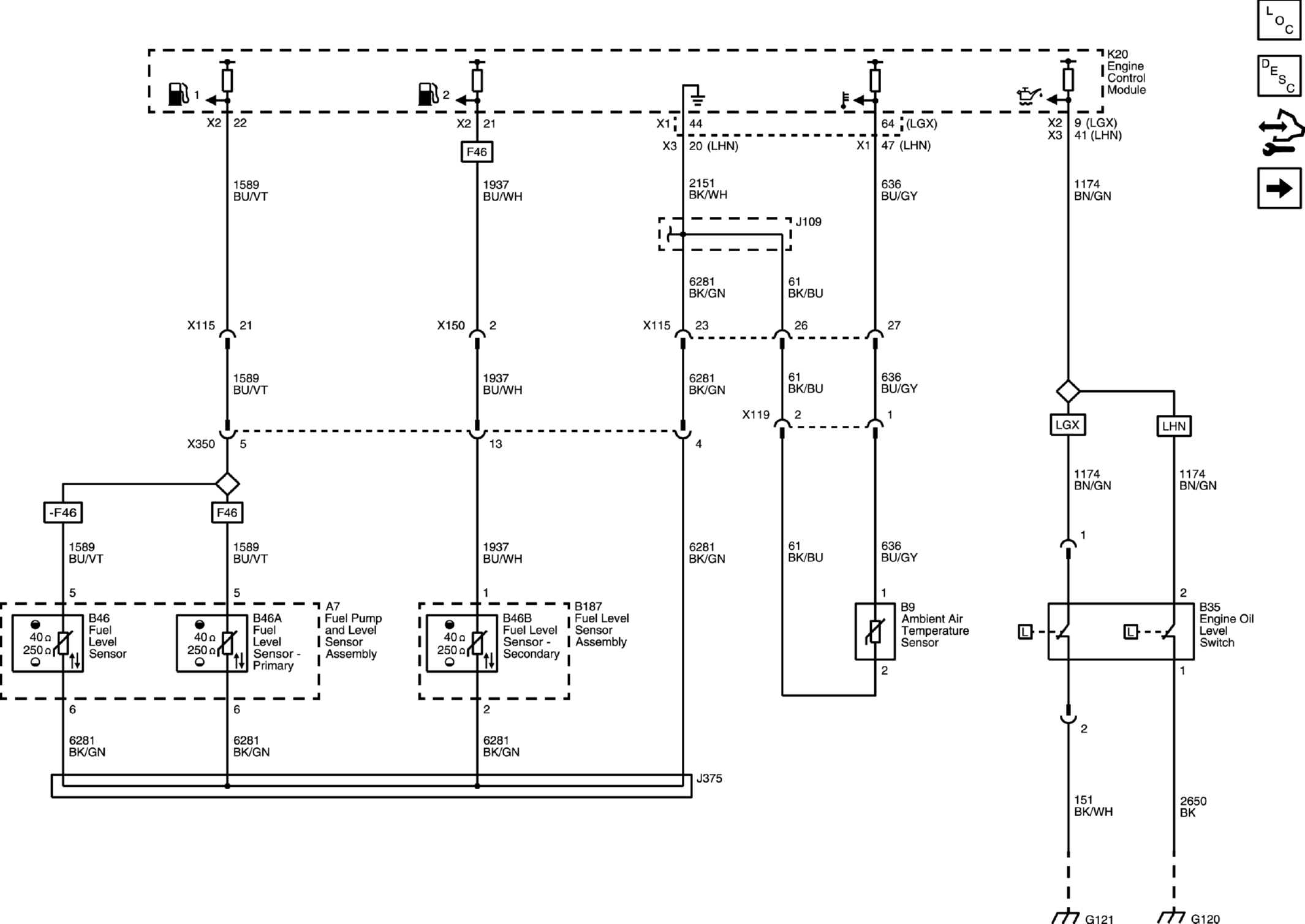

Home >> Buick >> 2018 >> LaCrosse Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Fuel Level and Ambient Air Temperature
